    1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FG15T
    Certification : CE,ISO
    Price : negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 300 units/ moth
    Delivery Time : 30days
    • Product Details
    • Company Profile

    1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift

    1.5 ton LPG gasoline forklift with Nissan k25 engine


    • New Nissan K25 engines - Introduced for lower emissions and better reliability
    • Transmission Suspension - Greatly reduces noise & vibrations (down to 79db)
    • High Visibility Mast - Significantly better view through the mast due to hidden hoses and cylinders
    • Better Steering - The rear axle has been re-designed allowing the wheels to turn up to 85 degrees
    • Greater Lift Speed - Lift speed is notably quicker
    • Hidden Tilt Cylinders - Frequently requested to avoid marring from chains, over-spray, & debris
    • Better Brakes - The brake system has been moved to an oil-immersed design for better performance and higher reliability (up to 8000 hours)
    • Superior Ergonomics - Seating, steering, & controls have all been redesigned toprovide more comfortable & efficient operation

    Standard configuration:

    3m 2-stage mast

    Nissank25 engine

    920mm fork length

    Pneumatic tire

    Front lighting system

    Back up alarm

    Rear view mirror

    toyota seat

    LPG bracket

    The specification of 1.5 ton LPG forklift.

    Manufacturer  LTMG
    Model Power shift T/MFG15T
    Load capacity kg1500
    Load center mm500
    Power unit  Gasoline/LPG
    Operator type  Driver/seat
    Tire typeFront/rear Pneumatic
    WheelFront/rear 2/2
    Max. lifting height mm3000
    Free lift mm155
    Fork sizeL*W*Tmm920*100*35
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork) mm2245
    Total width mm1070
    Mast height (fork lowering) mm1995
    Overall height fork raisedWith backrestmm4030
    Height to head guard mm2060
    Turning radius(outside) mm2040
    Front face of fork to front axle mm395
    Min. right angle stacking aislewithout load length&clearancemm2435
    SpeedMax Travelling full/no loadkm/h14/14.5
    Lifting full/no loadmm/s440/500
    Lowering full/no loadmm/s370/530
    Max.drawbar pullPower shift T/M full/no loadkg1130/690
    Gradeability at 1.6km/hPower shift T/M full/no load%21/18
    Truck weight kg2550
    Weight distributionFull load front/rearkg3580/470
    No load front/rearkg1110/1440
    TiresNumberfront/rear2/2
    Modelfront axle6.50-10-10PR
    rear axle5.00-8-10PR
    Wheelbase mm1425
    TreadFront/rearmm890/900
    Ground clearanceAt lowest point(mast)mm115
    Framemm105
    BrakeService brake Hydraulic-foot pedal
    Parking brake Mechanical-hand lever
    BatteryVoltage/capacityV/AH12/80
    EngineModel Nissan K21
    Rated powerPS(kw/rpm)47/2250(34.6/2250)
    Rated torquekg-m max.(N.m)15.7/1600(153/1600)
    Number of cylinders 4
    PlacementL2.065
    Fuel tank capacityL50
    TransmissionSpeed forward/backwardPower shift T/M1-1 power shift T/M
    Operating pressureHydraulic system pressurekg/cm²180

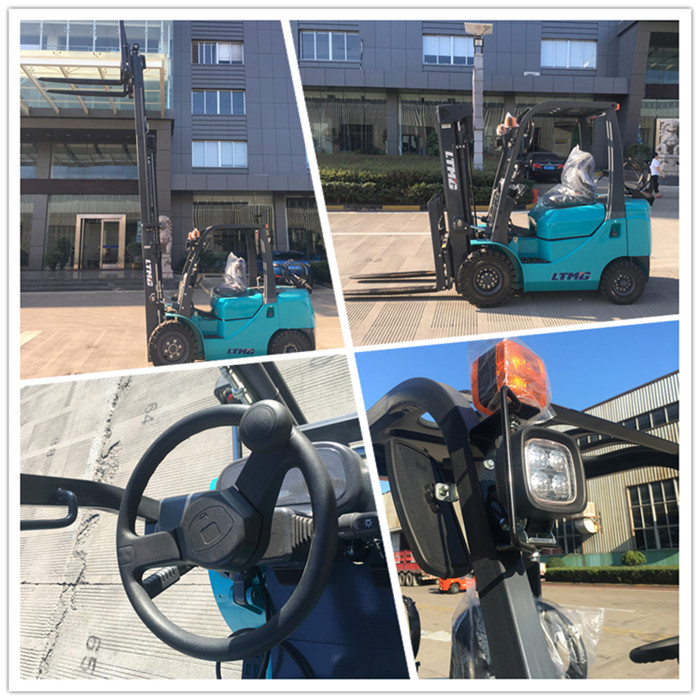

    Details of forklift

    After-sale service

    We manufacturers,(LTMG) always treat the after-sale service more important than sale. Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.

    All the products of LTMG supplied with one year or 2000 workling hours (which occurs first) period quality warranty.

    Detail clauses and policies please see to our website and product’s quality certificate.


    Our company

    1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift


    FAQ:
    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.


    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.


    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.


    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.


    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.


    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
