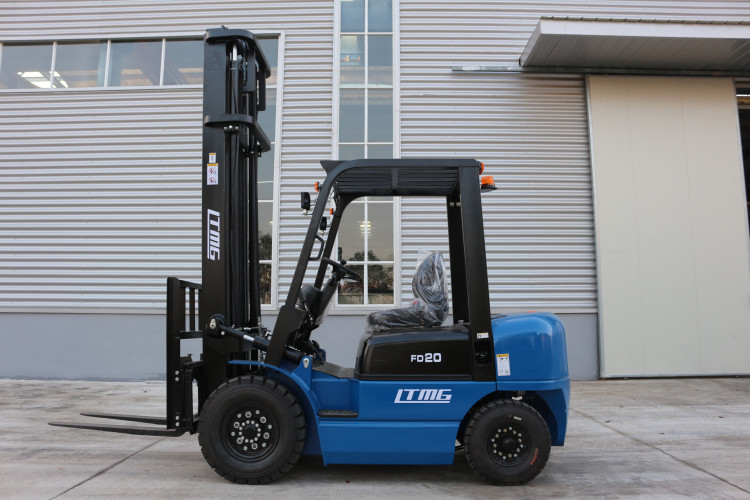

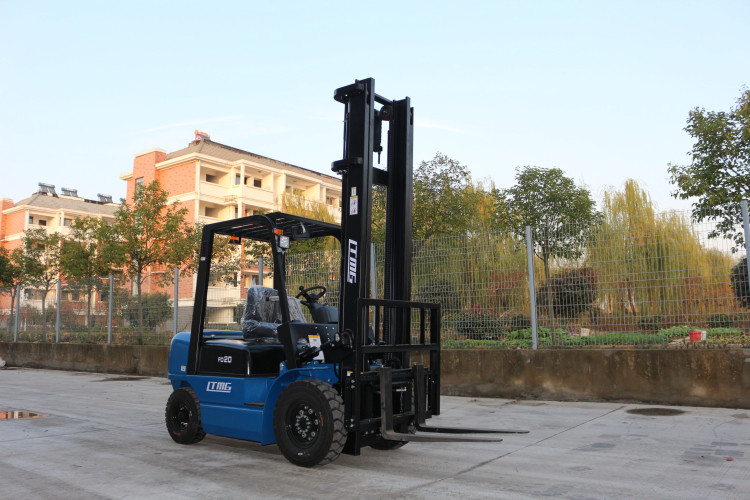

    2 ton small forklift , diesel forklift truck with 3-stage mast

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD20
    Certification : CE,ISO
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    2 ton small forklift , diesel forklift truck with 3-stage mast

    2 ton small forklift , diesel forklift truck with 3-stage mast


    2 ton forklift feature


    1) Innovative Design;excellent operating performance
    2) Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation;
    3) Solid Overhead Guard -- specially designed for additional security;
    4) Ergonomics Seat -- much more comfortable and fatigue-relieve able after long time operation;
    5) Powerful Engine -- imported brand engine ensures high performance, safty and efficiency;
    6) Super low & Non-slip step.


    The specification of 2 ton diesel forklift

    Features1ManufacturerLTMG
    2ModelPower shift T/MFD20T
    Manual shift T/MFD20C
    3Load capacitykg2000
    4Load centermm500
    5Power unitDiesel
    6Operator typeDriver/seat
    7Tire typeFront/rearPneumatic
    8WheelFront/rear2/2
    Dimension9Max. lifting heightmm3000
    10Free liftmm160
    11Fork sizeL*W*Tmm1070*120*40
    12Tilt rangeMast forward/backwarddeg6/12
    13Overall length(without fork)mm2460
    14Total widthmm1150
    15Mast height (fork lowering)mm1995
    16Overall height fork raisedWith backrestmm4030
    17Height to head guardmm2120
    18Turning raduis(outside)mm2170
    19Front face of fork to front axlemm450
    20Min. right angle stacking aisle

    without load

    length&clearence

    mm2615
    Performance21SpeedMax Travelling full/no loadkm/h17/19
    22Liftin full/no loadmm/s550/580
    23Lowering full/no loadmm/s450/550
    24Max.drawbar pullPower shift T/M full/no loadkg1670/830
    Manual shift T/M full/no loadkg1700/830
    25Gradeability at 1.6km/hPower shift T/M full/no load%27/20
    Manual shift T/M full/no load%21/20
    Weight26Truck weightkg3330
    27Weight distributionFull load front/rearkg4700/630
    28No load front/rearkg1510/1820
    Frame29TiresNumberfront/rear2/2
    30Modelfront axle7.00-12-12PR
    31rear axle6.00-9-10PR
    32Wheelbasemm1600
    33TreadFront/rearmm970/970
    34Ground clearenceAt lowest point(mast)mm110
    Framemm115
    35BrakeService brakeHydraulic-foot pedal
    Parking brake

    Mechanical-hand

    lever

    Engine36BatteryVoltage/capacityV/AH12/80
    37EngineModelISUZU C240
    Rated powerkw/rpm34.3/2500
    Rated torqueN.m/rpm138/1800
    Number of cylinders4
    PlacementL2.369
    Fuel tank capacityL70
    38TransmissionSpeed forward/backward

    Power shift T/M

    Manual shift T/M

    1-1 power

    shift T/M

    2-2 manual

    shift T/M

    39Operating pressureHydraulic system pressurekg/cm²180

    2 ton small forklift , diesel forklift truck with 3-stage mast2 ton small forklift , diesel forklift truck with 3-stage mast


    After sale service


    Nowadays more than 60 agents around the world can supply LTMG professional after-sale service.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.


    Our company

    2 ton small forklift , diesel forklift truck with 3-stage mast

    FAQ:


    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
