    900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD300
    Certification : CE,ISO
    Price : negotiable
    Supply Ability : 300 units / month
    Delivery Time : 35days
    • Product Details
    • Company Profile

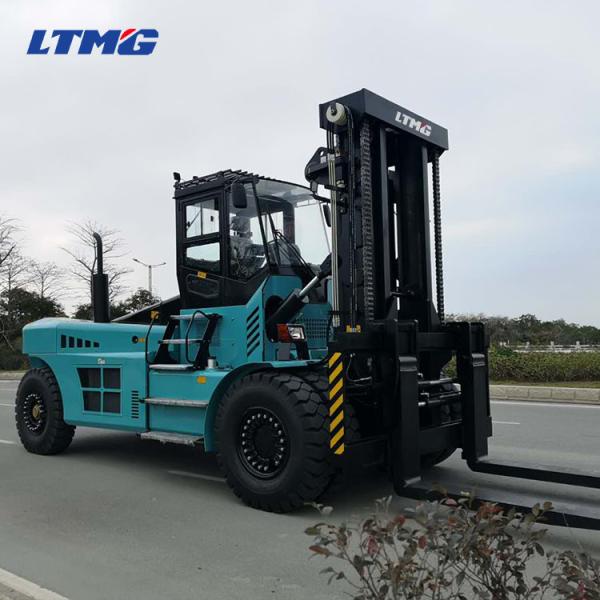

    900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports

    30 ton container big forklift with diesel engine forklift truck

    -- Innovative Design
    -- Simplified Serviceability
    -- Enhanced Productivity
    -- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation
    -- Solid Overhead Guard -- specially designed for additional security
    -- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation
    -- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency
    -- Super low & Non-slip step

    the specification of 30 ton diesel forklift.

    model FD300
    Load CapacityKg30000
    Load Centremm900
    Power Type Diesel
    TireFront x 4mm14.00-25-32 Superelastic
    Rear x 2mm14.00-25-32 Superelastic
    Fork Length mm2440 x 250 x 110
    Mast Tilt Angle (F / R) Deg5° / 10°
    Mast Tilt Speed º/S0.4º
    Turning Radius (outside) mm6500
    Aisle width with pallets 1000*1200 across forksmm10350
    Minimum Insecting Aislemm8800
    SpeedTravel with / without loadkm/h20 / 25
    Lifting with / without loadmm/s300 / 320
    Lowering with / without loadmm/s400 / 300
    Max.Gradeabilitywith / without load%20 / 25
    Tractive forcewith / without loadKN180 / 200
    Service weightKg41500
    Overall DimensionLength to face of fork (Without fork)mm9260
    Overall Widthmm3050
    Overhead Guard Heightmm3415
    Brake Distance  m5
    Ground Clearance (chasis / mast / counterweight)mm410 / 250 / 350
    Lateral fork adjustment rangemm1020 x 2540
    Wheelbasemm4650
    Front / Rear Overhangmm1239 / 966
    Front / Rear Treadmm2200 / 2497
    Battery Voltage / CapacityV/Ah24 / 180
    EngineOrginal VOLVERated Horsepowerbhp / r.p.m181 / 2300
    TAD750VERated torque/r.p.m.N.m/r.p.m1050 / 1500
     No.of CylinderNos.6
     Bore x Stroke 108 x 130
     Fuel Tank CapacityLtrs.400
    Transmission (electro hydraulic)Number of speeds (with / without load)I gear5 / 5.6
    II gear9.8 / 11
    III gera22 / 24
    Operating Pressure for Attachment MPA17.5
    Lift Height duplex standard mastmm4000
    Mast Height Lowered / Extendedmm4000 / 6000


    After-sale service

    Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.


    Our company

    900mm Load Center 30 Ton Forklift , Container Big Forklift Trucks For Airports


    FAQ:


    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.




    Company imformation
    LTMG Machinery Group co.,ltd which was established in 2001,is a leading manufacturer of construction and materials equipment. LTMG the forklift factory already have 15,000 units forklifts annual production capacity with a 120,000 square meters production base
