    12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD120
    Certification : CE, ISO
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 200 units per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

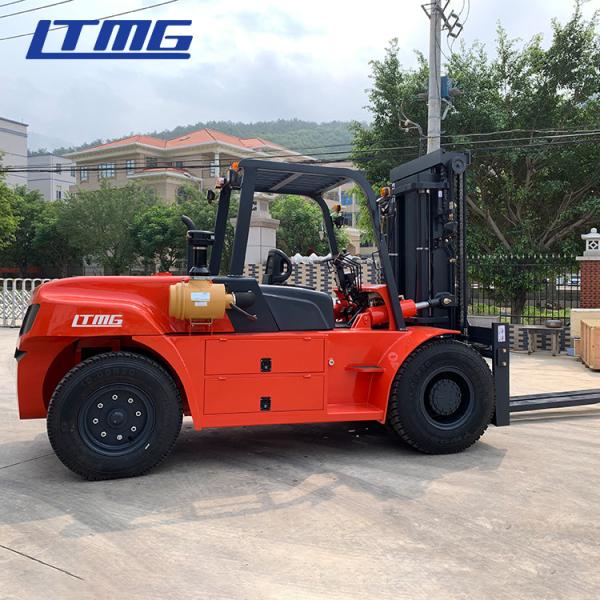

    12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton

    Internal Combustion forklift truck 12 ton diesel hydraulic forklift for sale


    Feature


    1. Adopt Cummins, engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.

    2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.

    3. Adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.

    4. Variable speed control valve matched with neutral starter, the machine start more secure.

    5. Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structrue bridge shell support, increase the load capacity and service life.


    The specification of 12 ton diesel forklift


    Load Centremm600
    Lift Heightmm3000
    Fork SizeL×W×Tmm1500×180×100
    Mast Tilt AngleF/RDeg6°/12°
    Front Overhang (Wheel center to fork face)mm770
    Ground Clearance(Bottom of mast)mm250
    Overall DimensionLength to face of fork(Without fork)mm4700
    Overall Widthmm2200
    Mast Lowered Heightmm3100
    Overhead Guard Heightmm2590
    Turning Radius (outside)mm4450
    Min. intersecting aislemm4200
    SpeedTravel (Full load)km/h25
    Lifting(Full load)mm/s290
    Max.Gradeability (No load/Full load)%20
    Tire (solid tire)Frontmm9.00-20-14PR
    Rearmm9.00-20-14PR
    Wheelbasemm3200
    Service weightkg14500
    BatteryVoltage/CapacityV/Ah(12V/80Ah)x2
    EngineModel6BT5.9-C130
    ManufactureXICHAI
    Rated output/r.p.m.kw97/2200
    Rated torque/r.p.m.N·m560/1500
    No.of Cylinder6
    Displacementcc5900
    Fuel Tank CapacityL150
    TransmissionTypePowershift
    StageFWD/RVS2/2

    12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton


    After-sale Service


    Nowadays more than100 agents around the world can supply LTMG professional after-sale service.
    All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please check our website and product certificate.


    Our company

    12000kg Rated Loading Internal Combustion Forklift Lifting Equipment 12 Ton


    FAQ:


    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
