    3-Stage Mast, Powerful 5 Ton Diesel Forklift Truck With Europe III Standard

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD50
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    3-Stage Mast, Powerful 5 Ton Diesel Forklift Truck With Europe III Standard

    3-Stage Mast, Powerful 5 Ton Diesel Forklift Truck With Europe III Standard


    Features:

    1) Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides;

    2) Install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise andhigh exhaust system as option to reduce dust;

    3) Install heavy-duty driving axle to ensure safety work at bad working conditions.;

    4) Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.

    5) Strong and reliable wide field of mast provides wide operating vision.

    6) Equipped with the powerful and efficient engine , suitable for the Europe III emission standard (Mitsubishi S6S-T)


    Advantages:

    1)Forward visibility has been improved 10%.The wide mast, with lift chain spacing, makes the view forward less cluttered, enhance safety and improve productivity.

    2)Safe inspection .The engine hood has an automatically-locked. This fail-safe stopper prevents the hood from closing unexpectedly, ensuring safe inspection under the hood.

    3)Outstanding visibility from the rear. High-mount stop lamps. The stop lamps are installed at the rear on the top of the overhead guard to provide improved visibility to nearby works or other vehicles behind the truck, thus offer added safety in the workplace.


    Specification:

    GeneralModelFD50
    Power TypeDiesel
    Rated Capacitykg5000
    Load Centremm500
    Characteristic&DimensionLift Heightmm6000
    Fork SizeL×W×Tmm1070×150×50
    Mast Tilt AngleF/RDeg6°/12°
    Front Overhang (Wheel center to fork face)mm570
    Ground Clearance(Bottom of mast)mm210
    Overall DimensionLength to face of fork(Without fork)mm3220
    Overall Widthmm1480
    Mast Lowered Heightmm2350
    Mast Extended Height(With backrest)mm4250
    Overhead Guard Heightmm2320
    Turning Radius (outside)mm2940
    Min. intersecting aislemm2960
    PerformanceSpeedTravel (Full load)km/h25
    Lifting(Full load)mm/s440
    Max.Gradeability (No load/Full load)%20
    ChassisTireFrontmm300-15-18PR
    Rearmm7.00-12-12PR
    Wheelbasemm2100
    Service weightkg6900
    Power&TransmissionBatteryVoltage/CapacityV/Ah(12V/80Ah)x2
    EngineModelS6S
    ManufactureMitsubishi
    Rated output/r.p.m.kw57/2200
    Rated torque/r.p.m.N·m284-297/1400-1600
    No.of Cylinder4
    Bore×Strokemm108×125
    Displacementcc4578
    Fuel Tank CapacityL105
    TransmissionTypePower shift
    StageFWD/RVS2/1
    Operating Pressure for AttachmentMpa17.5

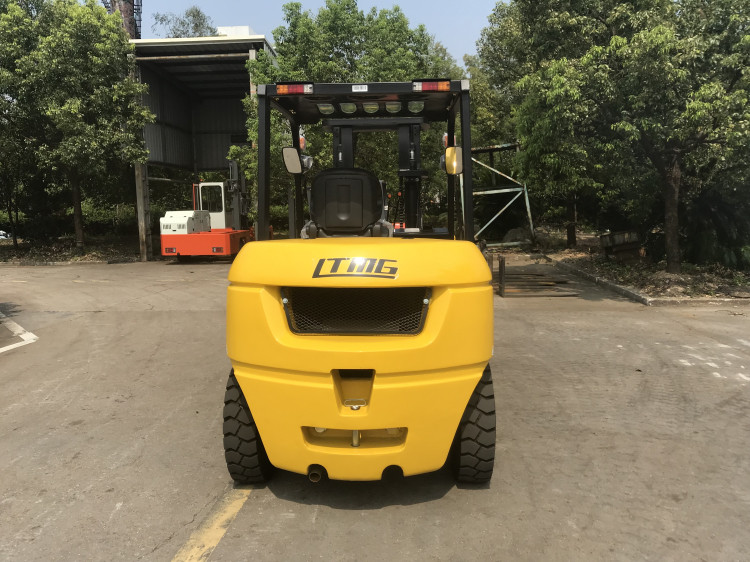

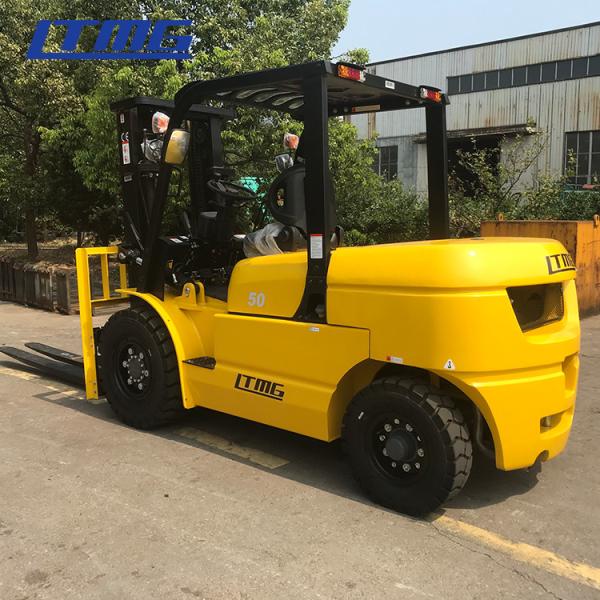

    Pictures:

    3-Stage Mast, Powerful 5 Ton Diesel Forklift Truck With Europe III Standard3-Stage Mast, Powerful 5 Ton Diesel Forklift Truck With Europe III Standard


    After-sale service:

    Nowadays we have been sell more than 100 countries. LTMG Machinery is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
    Detail clauses and policies please see to our website and product’s quality certificate.


    Our company

    3-Stage Mast, Powerful 5 Ton Diesel Forklift Truck With Europe III Standard

    FAQ:

    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.


    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.


    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.


    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.


    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.


    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
