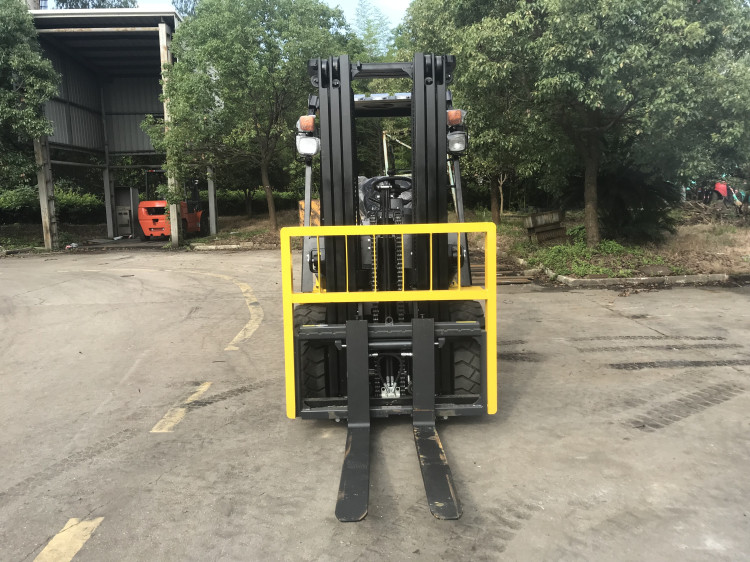

1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center

Xiamen LTMG Co., LTD
Contact Now
    Buy cheap 1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center from wholesalers

    Buy cheap 1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center from wholesalers
    • Buy cheap 1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center from wholesalers
    • Buy cheap 1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center from wholesalers
    • Buy cheap 1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center from wholesalers

    1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD35
    Certification : CE,ISO
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center

    3.5 ton diesel hydraulic forklift truck with fork positioner 1670mm long fork


    Feature


    1. according to customer demand, customized 1670mm fork length.

    2. with fork positioner, so that the fork can move left and right

    3. 4.5m two stage mast, wide mast broadens visual field.

    4. side shift function

    5. automatic transmission,

    6. emergency stop switch, mechanical gear: one button-based control, which can effectively protect the electrical system.


    The specification of 3.5 ton diesel forklift


    FD35T Technology Specification
    Features1ManufacturerLTMG
    2ModelPower shift T/MFD35T
    Manual shift T/MFD35C
    3Load capacitykg3500
    4Load centermm500
    5Power unitDiesel
    6Operator typeDriver/seat
    7Tire typeFront/rearPneumatic
    8WheelFront/rear2/2
    Dimension9Max. lifting heightmm4500
    10Free liftmm150
    11Fork sizeL*W*Tmm1670*125*50
    12Tilt rangeMast forward/backwarddeg6/12
    13Overall length(without fork)mm2760
    14Total widthmm1285
    15Mast height (fork lowering)mm2075
    16Overall height fork raisedWith backrestmm4250
    17Height to head guardmm2140
    18Turning raduis(outside)mm2495
    19Front face of fork to front axlemm485
    20Min. right angle stacking aisle
    without load length&clearence
    mm2975
    Performance21SpeedMax Travelling full/no loadkm/h18/19.5
    22Lifting full/no loadmm/s450/500
    23Lowering full/no loadmm/s450/420
    24Max.drawbar pullPower shift T/M full/no loadkg2100/1000
    Manual shift T/M full/no loadkg2100/1000
    25Gradeability at 1.6km/hPower shift T/M full/no load%18/20
    Manual shift T/M full/no load%18/20
    Weight26Truck weightkg4780
    27Weight distributionFull load
    front/rear
    kg7380/900
    28No load
    front/rear
    kg1820/2960
    Frame29TiresNumberfront/rear2/2
    30Modelfront axle28x9-15-12PR
    31rear axle6.50-10-10PR
    32Wheelbasemm1700
    33TreadFront/rearmm1060/970
    34Ground clearenceAt lowest point(mast)mm120
    Framemm135
    35BrakeService brakeHydraulic-foot pedal
    Parking brakeMechanical-hand lever
    Engine36BatteryVoltage/capacityV/AH12/80
    37EngineModelISUZU 4JG2
    Rated powerkw/rpm44.8/2450
    Rated torqueN.m/rpm186/1800
    Number of cylinders4
    PlacementL3.059
    Fuel tank capacityL70
    38TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M

    1-1 power shift T/M

    2-2 manual shift T/M

    39Operating pressureHydraulic system pressurekg/cm²180

    1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center


    After-sale service


    Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.


    Our compnay

    1670mm Long Small Fork Truck , 4.5m 2 Stage Mast Forklift 3.5 Ton 500mm Load Center


    FAQ:

    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.


    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.


    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.


    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.


    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.


    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
