Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin

    Buy cheap Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin from wholesalers

    Buy cheap Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin from wholesalers
    • Buy cheap Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin from wholesalers
    • Buy cheap Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin from wholesalers
    • Buy cheap Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin from wholesalers
    • Buy cheap Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin from wholesalers

    Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FG35T
    Certification : CE,ISO
    Price : negotiable
    Supply Ability : 300 units month
    Delivery Time : 30
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin

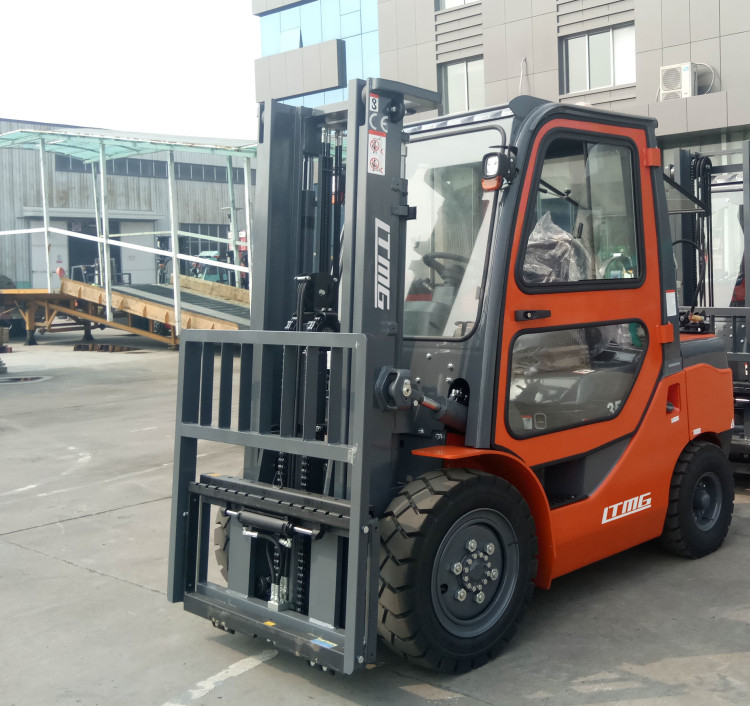

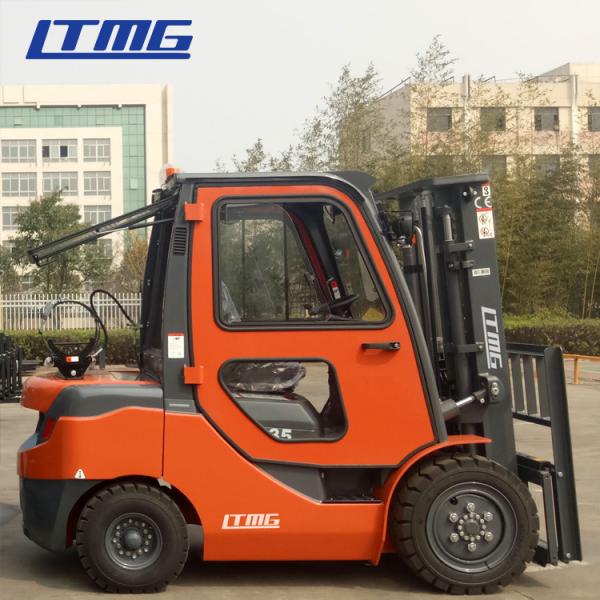

    3.5 ton lpg forklift truck four wheel forklift with cabin


    Quick Detail:
    1, LPG forklift truck, Gas power forklift
    2, Material Handling, loading & unloading cargo, moving cargo in pallets
    3, 3500kg rated capacity, 3000mm lifting height, 500mm load center
    4. Nissank25 engine available
    5. China transmission available


    LTMG offers innovative design that integrates high end features & reliability without the high end price tag. They are durable enough to stand up to even the most challenging material handling applications. forklift offer accessible maintenance, straightforward operation, enhanced operator ergonomics, and dedicated attention to detail with operator safety in mind. All forklifts have CE Certification, are produced in an ISO9001 accredited facility,
    Our company with ISO quality system and National Quality Prize, Products meet CE, EPA standard and get the Certificate of global top 3 inspection services company SGS, TUV, BV, more than 50 patents for invention makes us leading place in material handling industry
    Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With CabinSide Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin

    The specification of 3.5 ton forjklift truck

    FeaturesManufacturer  LTMG
    Model Power shift T/MFG35
    Manual shift T/MFG35
    Load capacity kg3500
    Load center mm500
    Power unit  Gasoline
    Operator type  Driver/seat
    Tire typeFront/rear Pneumatic
    WheelFront/rear 2/2
    DimensionMax. lifting height mm3000
    Free lift mm150
    Fork sizeL*W*Tmm1070*125*50
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork) mm2720
    Total width mm1285
    Mast height (fork lowering) mm2075
    Overall height fork raisedWith backrestmm4250
    Height to head guard mm2140
    Turning radius(outside) mm2460
    Front face of fork to front axle mm485
    Min. right angle stacking aislewithout load length&clearancemm2940
    PerformanceSpeedMax Travelling full/no loadkm/h18/19.5
    Lifting full/no loadmm/s450/500
    Lowering full/no loadmm/s450/420
    Max.drawbar pullPower shift T/M full/no loadkg1800/1000
    Manual shift T/M full/no loadkg1900/1000
    Gradeability at 1.6km/hPower shift T/M full/no load%17/20
    Manual shift T/M full/no load%17/20
    WeightTruck weight kg4610
    Weight distributionFull load front/rearkg7260/850
    No load front/rearkg1840/2770
    FrameTiresNumberfront/rear2/2
    Modelfront axle28x9-15-12PR
    rear axle6.50-10-10PR
    Wheelbase mm1700
    TreadFront/rearmm1060/970
    Ground clearanceAt lowest point(mast)mm120
    Framemm135
    BrakeService brake Hydraulic-foot pedal
    Parking brake Mechanical-hand lever
    EngineBatteryVoltage/capacityV/AH12/60
    EngineModel Nissan K25
    Rated powerPS(kw/rpm)51/2300(37.4/2300)
    Rated torquekg-m max.(N.m)18/1600(177/1600)
    Number of cylinders 4
    DisplacementL2.488
    Fuel tank capacityL70
    TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M1-1 power shift T/M 2-2 power shift T/M
    Operating pressureHydraulic system pressurekg/cm²180


    After-sale service
    Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
    Detail clauses and policies please see to our website and product's quality certificate.


    Our company

    Side Shift 3 .5 Ton Gas Powered Forklift , 4 Wheel Drive Forklift With Cabin


    FAQ:

    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
