    Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD30
    Certification : CE/ISO
    Price : negotiable
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

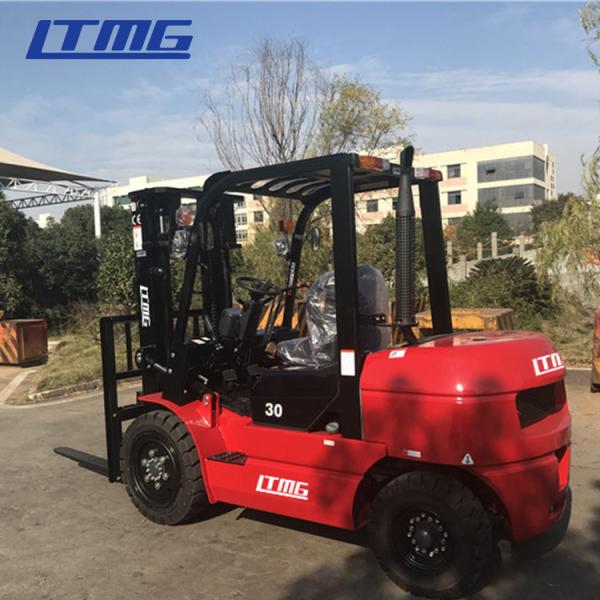

    Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast

    Container handling equipment 3 ton boom forklift with 4500mm triplex mast


    Features of boom forklift

    ergonomic design: FD30 series forklift with built-in tilt cylinder, High-grade adjustable damping seat to reduce operator’s fatigue,broad vision from it’s door frame.

    High strength protect design: wide field of view and high strength protective top frame, maximize protect the safety of the operator.All bolts in the vehicle are high strength bolts of grade 10.9,Improved component impact, anti distortion ability.

    Strong driving part: High quality match the driving part and the hydraulic system, which make the whole car more efficient energy saving efficiency.

    Electric system: Intelligent electronic monitoring combination instrument,LED screen, high reliability, Electrical system adopts the waterproof sealing plug structure, improve the safety and reliability


    Specifications of boom forklift

    Features1ManufacturerLTMG
    2ModelPower shift T/MFD30T
    Manual shift T/MFD30C
    3Load capacitykg3000
    6Operator typeDriver/seat
    7Tire typePneumatic
    8WheelFront/rear2/2
    Dimension9Max. lifting heightmm3000
    10Free liftmm150
    11Fork sizeL*W*Tmm1070*125*45
    12Tilt rangeMast forward/backwarddeg6/12
    13Overall length(without fork)mm2705
    15Mast height (fork lowering)mm2075
    16Overall height fork raisedWith backrestmm4250
    17Height to head guardmm2140
    18Turning raduis(outside)mm2445
    19Front face of fork to front axlemm480
    20Min. right angle stacking aislewithout load length&clearencemm2925
    Performance21SpeedMax Travelling full/no loadkm/h18/19.5
    22Lifting full/no loadmm/s450/500
    23Lowering full/no loadmm/s450/450
    24Max.drawbar pullPower shift T/M full/no loadkg1500/1000
    Manual shift T/M full/no loadkg1550/1000
    25Gradeability at 1.6km/hPower shift T/M full/no load%18/20
    Manual shift T/M full/no load%18/20
    Weight26Truck weightkg4380
    27Weight distributionFull load front/rearkg6490/890
    28No load front/rearkg1670/2700
    Frame29TiresNumberfront/rear2/2
    30Modelfront axle28x9-15-12PR
    31rear axle6.50-10-10PR
    32Wheelbasemm1700
    33TreadFront/rearmm1000/970
    34Ground clearenceAt lowest point(mast)mm120
    Framemm135
    35BrakeService brakeHydraulic-foot pedal
    Parking brakeMechanical-hand lever
    Engine36BatteryVoltage/capacityV/AH12/80
    37EngineModelISUZU C240
    Rated powerkw/rpm34.3/2500
    Rated torqueN.m/rpm138/1800
    Number of cylinders4
    PlacementL2.369
    Fuel tank capacityL70
    38TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M1-1 power shift T/M 2-2 manual shift T/M
    39Operating pressureHydraulic system pressurekg/cm²

    boom forklift

    Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex MastContainer Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast


    After-sale Service
    LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
    All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please check our website and product certificate.


    Our company

    Container Handling Equipment 3 Ton Boom Forklift With 4500mm Triplex Mast


    FAQ:

    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
