    4 Wheel 2500kg Electric Forklift Truck , Battery Powered Forklift Truck

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FB25
    Certification : CE/ISO
    Price : negotiable
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 30days
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

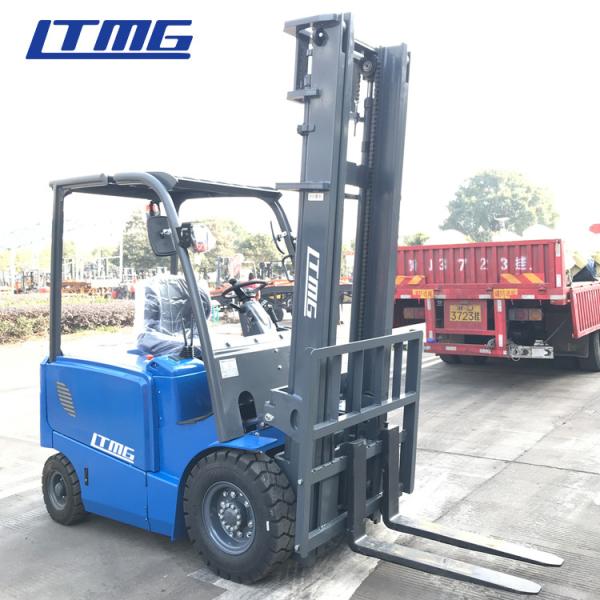

    4 Wheel 2500kg Electric Forklift Truck , Battery Powered Forklift Truck

    chinese 4 wheel 2.5 ton electric forklift truck with CE | ISO | SGS | ISO9001

    Features of 2.5 ton electric forklift truck
    1. High-Strength Overhead Guard
    2. Famouse Shell Brand Hydraulic Oil
    3. ISO9001 Environmental Certification,All nuts use zinc clear.
    4. Wide view Mast
    5. Battery can be taken out easily(two way,From top and from side)
    6. LED lamp
    7. Facous brand battery and charge
    8. Curtis or Zapi AC controller
    9. Reasonable structure,better heat dissipation for controller
    10. Battery water automatic replenish for optional
    11. Powerful AC driving motor applied to reduce maintenance cost and increase the overall performance.

    The specifications of chinese 4 wheel 2.5 ton electric forklift truck with CE | ISO | SGS | ISO9001

    FeaturesManufacturer  LTMG
    Model  FB25
    Load capacity kg2500
    Load center mm500
    Operator type  Driver/seat
    Tire typeFront/rear Air tires
    WheelNumber Front/rear2/2
     Free lift mm160
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork) mm2285
    Total width mm1150
    Mast height (fork lowering) mm1995
    Overall height fork raisedWith backrestmm4030
    Height to head guard mm2145
    Turning raduis(outside) mm2000
    Front face of fork to front axle mm445
    Min. right angle stacking aislenot add load length&clearencemm1935
    PerformanceSpeedMax Travelling full/no loadkm/h13.5/14.5
    Lifting full loadmm/s240
    Lifting no loadmm/s450
     Weight distributionFull load front/rearkg5425/895
    No load front/rearkg1425/2395
    FrameTiresNumberfront/rear2/2
    Modelfront axle21x8-9-16PR
    rear axle18x7-8-14PR
    Wheelbase mm1400
    TreadFront/rearmm955/950
    Ground clearenceAt lowest point(mast)mm110
    Framemm115
    BrakeService brake Hydraulic-foot peda
    Parking brake Mechanical lever
    Electric motor and controllerBatteryVoltage/capacityV/AH/5hr48V-565
    Weight (standard)kg945
    Electric motorDriving motorkw/60min8
    Hydraulic driving motorkw/5min8.6
    Control typeElectric driving1
    Operating pressureHydraulic system pressurekg/cm²175
    NOTE: 1.Drving AC choppedwave control mode /lifting AC voltage control mode


    2.5 ton electric forklift truck


    After-sale service
    Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

    Detail clauses and policies please see to our website and product's quality certificate.


    Our company

    4 Wheel 2500kg Electric Forklift Truck , Battery Powered Forklift Truck


    FAQ:

    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
