    Portable Industrial Counterbalance Forklift Isuzu Engine 500mm Load Center

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD30
    Certification : CE/ISO
    Price : negotiable
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 30days
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    • Product Details
    • Company Profile

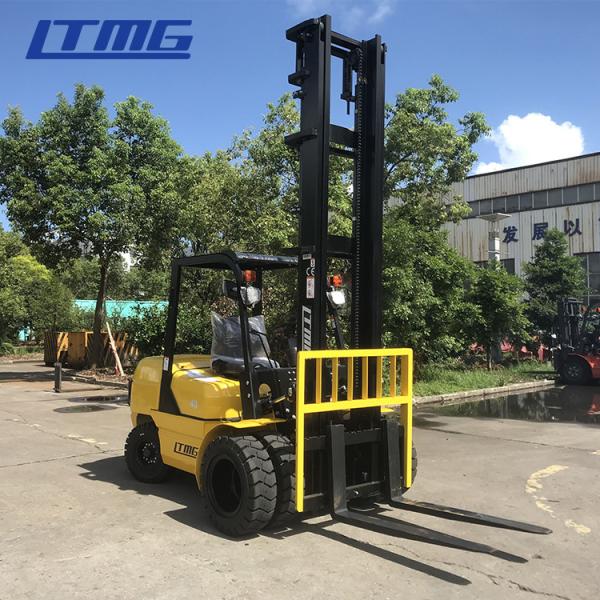

    Portable Industrial Counterbalance Forklift Isuzu Engine 500mm Load Center

    New product 3 ton portable forklift with Isuzu engine | side shifter


    Features of portable forklift

    1. Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the operator feel more comfortable during operation.
    2. This forklift truck is designed with high defintion liquid crystal displat device which not only provides convenience for operator to understand the working condition of truck, but also broadens the visual field of operator.
    3. This diesel forklift truck is designed with two stage free lifting mast or thre stage mast, luxurious and closed driving room, solid tire, sideshifter, roll clamp holder, and nonstandard forks ect, to meet your different needs.


    Specifications of portable forklift


    FeaturesManufacturerLTMG
    Load capacitykg3000
    Power unitDiesel
    Operator typeDriver/seat
    Tire typePneumatic
    WheelFront/rear2/2
    Free liftmm150
    Fork sizeL*W*Tmm1070*125*45
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork)mm2705
    Total widthmm1225
    Mast height (fork lowering)mm2075
    Overall height fork raisedWith backrestmm4250
    Height to head guardmm2140
    Turning raduis(outside)mm2445
    Front face of fork to front axlemm480
    Min. right angle stacking aislewithout load length&clearencemm2925
    PerformanceSpeedMax Travelling full/no loadkm/h18/19.5
    Lifting full/no loadmm/s450/500
    Lowering full/no loadmm/s450/450
    Max.drawbar pullPower shift T/M full/no loadkg1500/1000
    Manual shift T/M full/no loadkg1550/1000
    Gradeability at 1.6km/hPower shift T/M full/no load%18/20
    Manual shift T/M full/no load%18/20
    WeightTruck weightkg4380
    Weight distributionFull load front/rearkg6490/890
    No load front/rearkg1670/2700
    FrameTiresNumberfront/rear2/2
    Modelfront axle28x9-15-12PR
    rear axle6.50-10-10PR
    Wheelbasemm1700
    TreadFront/rearmm1000/970
    Ground clearenceAt lowest point(mast)mm120
    Framemm135
    BrakeService brakeHydraulic-foot pedal
    Parking brakeMechanical-hand lever
    EngineBatteryVoltage/capacityV/AH12/80
    EngineModelISUZU C240
    Rated powerkw/rpm34.3/2500
    Rated torqueN.m/rpm138/1800
    Number of cylinders4
    PlacementL2.369
    Fuel tank capacityL70
    TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M1-1 power shift T/M 2-2 manual shift T/M
    Operating pressureHydraulic system pressurekg/cm²

    portable forklift

    After-sale service
    Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

    Detail clauses and policies please see to our website and product's quality certificate.


    Our company

    Portable Industrial Counterbalance Forklift Isuzu Engine 500mm Load Center


    FAQ


    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
