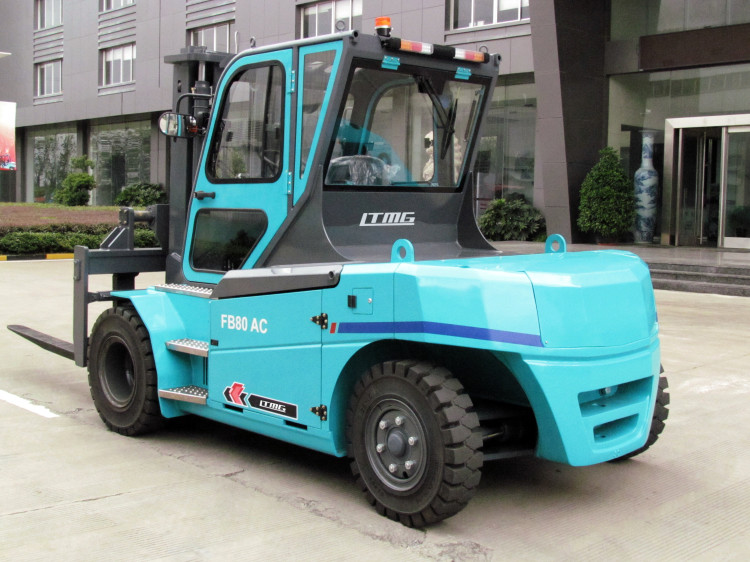

8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length

    Buy cheap 8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length from wholesalers

    Buy cheap 8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length from wholesalers
    • Buy cheap 8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length from wholesalers
    • Buy cheap 8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length from wholesalers

    8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FB80
    Certification : CE, ISO
    Price : USD69180-69250/Unit
    Payment Terms : T/T, L/C, Western Union, MoneyGram,
    Supply Ability : 200 units per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length

    The Specification of 8 ton electric forklift

    ModelFB80
    Rated Capacitykg8000
    Load Centremm600
    Lift Heightmm3000
    Fork Size (L×W×T)mm1220×150×70
    Mast Tilt Angle F/R (α°/β°)Deg6/10
    Length to face of fork (Without fork)mm3780
    Overall Widthmm2200
    Mast Lowered Heightmm2600
    Mast Extended Height (With backrest)mm4400
    Overhead Guard Heightmm2500
    Turning Radius (outside)mm3350
    Front Overhang (Wheel center to fork face)mm685
    Tread (Front/Rear)mm1650/1718
    Ground Clearance (Bottom of mast)mm200
    Wheelbasemm2450
    Fork Spread (Min./Max)mm300/2000
    Travel Speedkm/h14
    Lifting Speed (Full load)mm/s300
    Max. Gradeability%10
    Service Weightkg12780
    Front Tire9.00-16-14PR
    Rear Tire8.25-15-14PR
    Driven Motorkw14×2
    Lift Motorkw25×2
    Battery StandardV/Ah80/1150
    Controller ManufacturerCURTIS AC
    Operating Pressure for AttachmentMpa18

    8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length

    8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length


    8 ton electric forklift feature

    1. Easy-to-read operator display
    2. Front Dual AC Motor Traction System
    3. World Class Gear Box System
    4. Automatic Maintenance Alarm

    5. The most advanced 3-phase full AC technology in LTMG’s electric range combining the Italian ZAPI electric controller,ZAPI-SUPEREC AC motors,and HAKWER battery,as well as the excellent hydraulic system,these features guarantee your material handling become the most cost-efficient.

    6. The Energy Regeneration Function extend extra 15% working hours,which provide the possibility for your tough and long-time working condition.


    After-sale service
    Nowadays we have been sell more than 100 countries.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.


    FAQ:

    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
