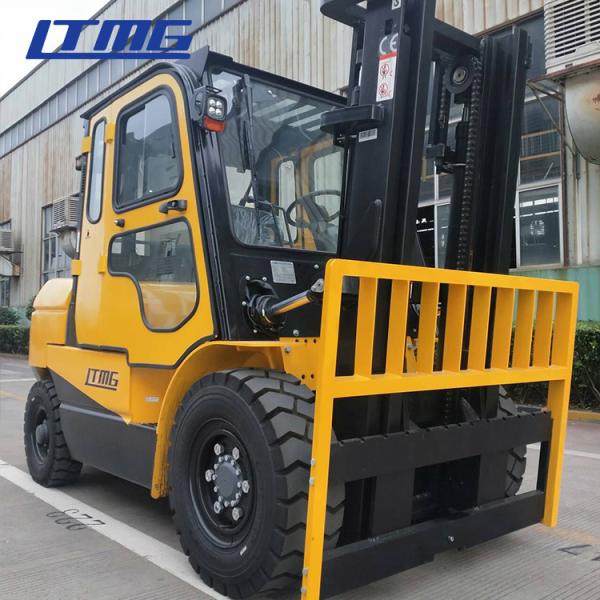

5000kg rated capacity diesel forklift truck with dual front tires

    Buy cheap 5000kg rated capacity diesel forklift truck with dual front tires from wholesalers

    Buy cheap 5000kg rated capacity diesel forklift truck with dual front tires from wholesalers
    • Buy cheap 5000kg rated capacity diesel forklift truck with dual front tires from wholesalers
    • Buy cheap 5000kg rated capacity diesel forklift truck with dual front tires from wholesalers

    5000kg rated capacity diesel forklift truck with dual front tires

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD50
    Certification : CE, ISO
    Price : USD13100-15900/Unit
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    5000kg rated capacity diesel forklift truck with dual front tires

    The Specification of 5000kg diesel forklift

    General1ModelFD50
    2Power TypeDiesel
    3Rated Capacitykg4500
    4Load Centremm500
    Characteristic&Dimension5Lift Heightmm3000
    6Fork SizeL×W×Tmm1070×150×50
    7Mast Tilt AngleF/RDeg6°/12°
    8Fork Overhang (Wheel center to fork face)mm579
    9Ground Clearance(Bottom of mast)mm150
    10Overall DimensionLength to face of fork(Without fork)mm3260
    11Overall Widthmm1460
    12Mast Lowered Heightmm2270
    13Mast Extended Height(With backrest)mm4165
    14Overhead Guard Heightmm2340
    15Turning Radius (outside)mm2910
    Performance16SpeedTravel (Full load)km/h25
    17Lifting (Full load)mm/s380
    18Max.Gradeability%20
    Chassis19TyreFrontmm300-15-18PR
    20Rearmm7.00-12-12PR
    21Wheelbasemm2100
    22Self weightkg6700
    Power&Transmission23BatteryVoltage/CapacityV/Ah(12/80) x 2
    24EngineModel6BG1-02
    25ManufactureISUZU
    26Rated output/r.p.m.kw82.4/2000
    27Rated torque/r.p.m.N·m416.8/1500
    28No.of Cylinder6
    29Bore×Strokemm105×125
    30Displacementcc6494
    31Fuel Tank CapacityL130
    32TransmissionTypeHydraulic
    33StageFWD/RVS2/1

    5000kg rated capacity diesel forklift truck with dual front tires5000kg rated capacity diesel forklift truck with dual front tires


    5000kg diesel forklift Feature

    1.New adjustable seat makes operator more comfortable.
    2. Work lights and warning lights make it safer and more efficient even in poor lighting conditions.
    3.New designed overhead guard protective device prevent the sudden accidents:The lifting system adopts buffering technology to reduce shock and vibration of the mast.
    4. Bigger and non-slip step: Bigger and non-slip step make the operating convenient and safe
    5. the full free 3-stage mast adopt German import channel With advanced welding technology , Increase the stability of ascension, durability and the width of front mast view, reduce the height of the instrument stand, expand the visibility of pallet fork tip and goods.

    After-sale service
    Nowadays we have been sell more than 100 countries.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.


    FAQ:

    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.
