Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery

Xiamen LTMG Co., LTD
Contact Now
    Buy cheap Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery from wholesalers

    Buy cheap Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery from wholesalers
    • Buy cheap Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery from wholesalers
    • Buy cheap Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery from wholesalers

    Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FB20
    Certification : CE, ISO
    Price : USD 13124 PER SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 UNITS PER MONTH
    Delivery Time : 31days
    • Product Details
    • Company Profile

    Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery

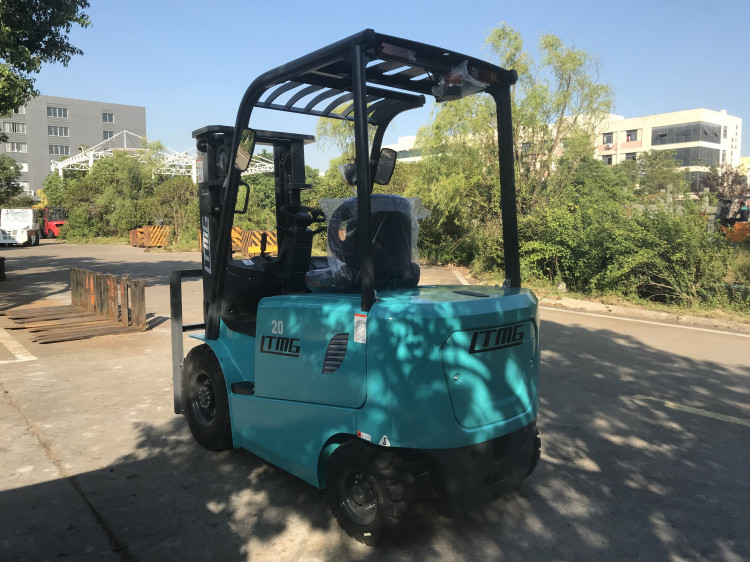

    Ltmg 4 wheel 2 ton electric forklift truck with LED lamp and 450ah battery


    Features of 2 ton electric forklift truck


    1.Low running cost

    Ltmg electric forklift truck operation cost is relatively low. The forklift power compared to the total operation cost and compared with the fuel forklift, basically the same, even lower.


    2.environmentally friendly and has low noise

    It not only won't produce waste gas, to run more smoothly. But also compared with the traditional fuel forklift or electric fork, the new model has low noise.

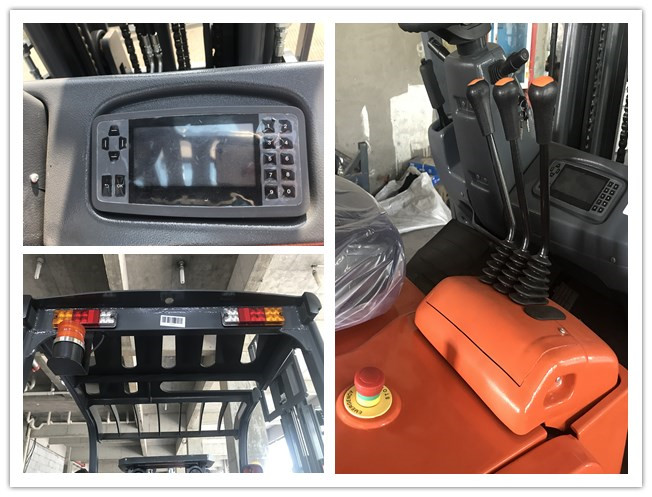

    3.rear combination lamp

    At the rear of the forklift truck equipped with a rear combination lamp, includes tail lights, brake lights, backup lights and flash warning light function, which greatly improved the visibility at the back of the forklift truck.


    4.used in various kinds of environments

    Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.


    5.new designed overhead guard

    New designed overhead guard protective device prevent the sudden accidents,the lifting system adopts buffering technology to reduce shock and vibration of the mast.


    The specifications of 2 ton electric forklift truck


    ManufacturerLTMG
    ModelFB20
    Load capacitykg2000
    Load centermm500
    Power unitBattery
    Operator typeDriver/seat
    Tire typepneumatic
    Wheel(x=driving)Front/rear2X/2
    Max. lifting heightmm3000
    Free liftmm160
    Fork sizeL*W*Tmm1070*122*40
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork)mm2245
    Total widthmm1150
    Mast height (fork lowering)mm1995
    Overall height fork raisedWith backrestmm4030
    Height to head guardmm2145
    Turning radius(outside)mm1980
    Front overhang ( face of fork to front axle)mm445
    Min. right angle stacking aislenot add load length&clearancemm2425
    SpeedMax Travellingfull loadkm/h13.5
    Max Travellingno loadkm/h15
    Liftingfull loadmm/s240
    Liftingno loadmm/s450
    Gradeabilityfull load%12.5
    Truck weight(with standard battery)kg3440
    Weight distributionFullloadfront/rearkg4565/875
    Noloadfront/rearkg1445/1995
    TiresNumberfront/rear2/2
    Modelfront axle21*8-9-16PR
    rear axle18*7-8-14PR
    Wheelbasemm1400
    TreadFront/rearmm955/950
    Ground clearanceAt lowest point(mast)mm110
    Framemm115
    BrakeServicebrakeHydraulic-foot pedal
    Parking brakeMechanical-hand lever
    BatteryVoltage/capacityV/AH/5hr48V-450
    Weight with box(standard)kg825
    Electric motorAC Driving motorkw11
    DC Hydraulic driving motorkw8.6
    AC Hydraulic driving motor (as option)kw13
    Control typeDriving AC , lifting DC
    Driving AC , lifting AC (as option )
    Operating pressurekg/cm²175

    2 ton electric forklift truck

    Ltmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah BatteryLtmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah BatteryLtmg 4 Wheel Electric Forklift Truck Low Running Cost With LED Lamp And 450ah Battery


    About us


    LTMG Machinery Group Co.,Ltd is a leading and professional supplier of Earth moving Equipment, Material Handing Equipment and Quarry Equipment in China.
    After 16 years growing, now LTMG has more than 3000 staffs, which 230 engineers and technical researchers. So far have more than 50 exclusive distributors in the world and export to over 100 countries and regions in European, America, Mideast, Asia,Africa etc also OEM service to our clients.


    After-sale service


    All the products of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
    Detail clauses and policies please see to our website and product's quality certificate.
