    Sit On Counterbalance Reach Truck , LPG Powered Shipping Container Lift Truck

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FG30
    Certification : CE,ISO
    Price : USD10523-11526 unit
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 300units month
    Delivery Time : 30days
    • Product Details
    • Company Profile

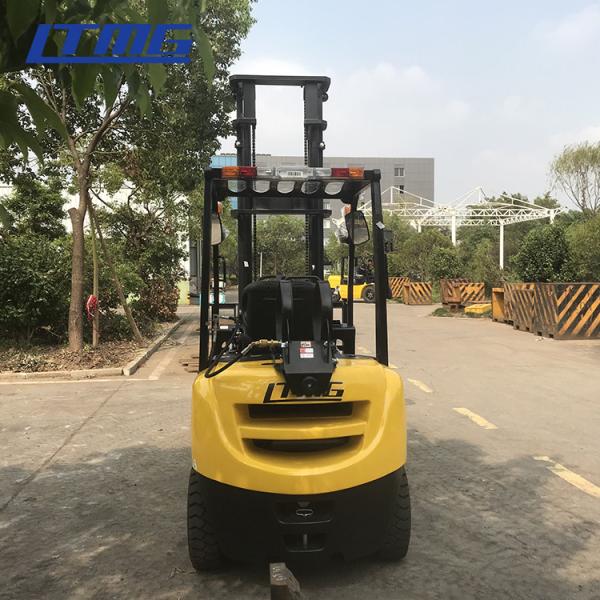

    Sit On Counterbalance Reach Truck , LPG Powered Shipping Container Lift Truck

    The features of 3 ton counter balance forklift lpg gas forklift with CE,ISO SGS


    - The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.high position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.The engine hood has functions of sound absorption and heat isolation.


    - Rear in-built dual lifting cylinder is used,wide visual view,safety operation and high efficiency.


    - A hydraulic converter produced by introduction of japanese technology,high efficiency,no oil leakage,reliable work,compact structure of hydraulic transmission,shift gear valve,micromotion valve,characterized by smooth starting,stepless speed adjustmet,micromotion and acceleration performance.


    - Adjustable driver’s seat,reducingoperation fatigue to a maximum extent.Tilt lifting steering wheel and new type multifunc-tional panel fully represents harmony between the machine and human.


    - Imported sealing parts are used in the cylinder,cone sealing used in fittings,good sealing performance,long service life;multiple reversing valve with automatic tilt locking device,advanced strudture to meet safety requirement.


    - Big power and free-maintenarting battery with American technology,small volume,good performance,long storage period;general contactor arranged in the electric circuit,prolong life of the key switch,completely removing self-discharge.


    - Beautiful appearance,quick and smooth lifting,high high productivity,it is an ideal loading and unloading machin for stations,ports,docks,warehouse,warehouse,airports and factories etc which need low noise and small smoke.


    The specification of 3 ton counter balance forklift lpg gas forklift with CE,ISO SGS

    Manufacturer  LTMG
    Model Power shift T/MFG30T
    Manual shift T/MFG30C
    Load capacity kg3000
    Load center mm500
    Power unit  Gasoline
    Operator type  Driver/seat
    Tire typeFront/rear Pneumatic
    WheelFront/rear 2/2
    Max. lifting height mm3000
    Free lift mm150
    Fork sizeL*W*Tmm1070*125*45
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork) mm2660
    Total width mm1225
    Mast height (fork lowering) mm2075
    Overall height fork raisedWith backrestmm4250
    Height to head guard mm2140
    Turning radius(outside) mm2400
    Front face of fork to front axle mm480
    Min. right angle stacking aislewithout load length&clearancemm2880
    SpeedMax Travelling full/no loadkm/h18/19.5
    Lifting full/no loadmm/s450/500
    Lowering full/no loadmm/s450/450
    Max.drawbar pullPower shift T/M full/no loadkg1300/1000
    Manual shift T/M full/no loadkg1350/1000
    Gradeability at 1.6km/hPower shift T/M full/no load%17/20
    Manual shift T/M full/no load%17/20
    Truck weight kg4220
    Weight distributionFull load front/rearkg6390/830
    No load front/rearkg1650/2570
    TiresNumberfront/rear2/2
    Modelfront axle28x9-15-12PR
    rear axle6.50-10-10PR
    Wheelbase mm1700
    TreadFront/rearmm1000/970
    Ground clearanceAt lowest point(mast)mm120
    Framemm135
    BrakeService brake Hydraulic-foot pedal
    Parking brake Mechanical-hand lever
    BatteryVoltage/capacityV/AH12/60
    EngineModel Nissan K21
    Rated powerPS(kw/rpm)47/2250(34.6/2250)
    Rated torquekg-m max.(N.m)15.7/1600(153/1600)
    Number of cylinders 4
    PlacementL2.065
    Fuel tank capacityL70
    TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M1-1 power shift T/M 2-2 power shift T/M
    Operating pressureHydraulic system pressurekg/cm²180

    Sit On Counterbalance Reach Truck , LPG Powered Shipping Container Lift TruckSit On Counterbalance Reach Truck , LPG Powered Shipping Container Lift Truck

    Company imformation

    LTMG Machinery Group co.,ltd which was established in 2001,is a leading manufacturer of construction and materials equipment. LTMG the forklift factory already have 15,000 units forklifts annual production capacity with a 120,000 square meters production base.

    After-sale service

    Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.

    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

    Detail clauses and policies please see to our website and product’s quality certificate.
