    Narrow Aisle Articulated Electric Lift Truck 2 Ton With 7m Lifting Height

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FRB20
    Certification : CE/ISO
    Price : USD 21125 PER SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 400 Set/Sets per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Narrow Aisle Articulated Electric Lift Truck 2 Ton With 7m Lifting Height

    Narrow aisle articulated 2 ton electric Forklift truck with 7m lifting height


    Features


    1.AC power lifting and driving

    2.Works in very narrow aisles

    3.2000kg load capacity

    4.Lifts to height of 7m

    5.Easy battery change

    6.Side shift

    7.Loads like a counterbalance


    Specifications of articulated 2 ton electric Forklift truck


    DescriptionElectric
    1Lift Height mm47507050
    2Free Lift mm15362346
    3Closed Height mm23983298
    4Extended Height mm51637913
    5Mast Range mm4300-90507050-12400
    6Overall Length mm2780
    7Ground Clearance mm50
    8Overhead Guard height mm2270
    9Chassis Width Rear mm12201400
    10Chassis Width Front mm980
    11Load Centre mm500
    12Wheel Base mm1735
    13Seat Height mm1220
    14Mast Tilt(back/fwd) °3/1
    15Capacity kg2000
    16Ground Speed km/h16
    17Lift Speed (Laden/unladen) m/s0.4/0.5
    18Front Tyre size mm412*174
    19Rear Tyre size mm457*150
    20Gradeability (Laden/unladen) %12/15
    21Battery Voltage/Capacity/Engine V/Ah48V/775/930Ah
    22Weight of Truck less battery kg5310
    23Weight of Truck including the battery kg6900
    24Standard ColorYellow/Grey/Red
    25SeatKAB
    26Drive Type19.5kw AC Traction motor

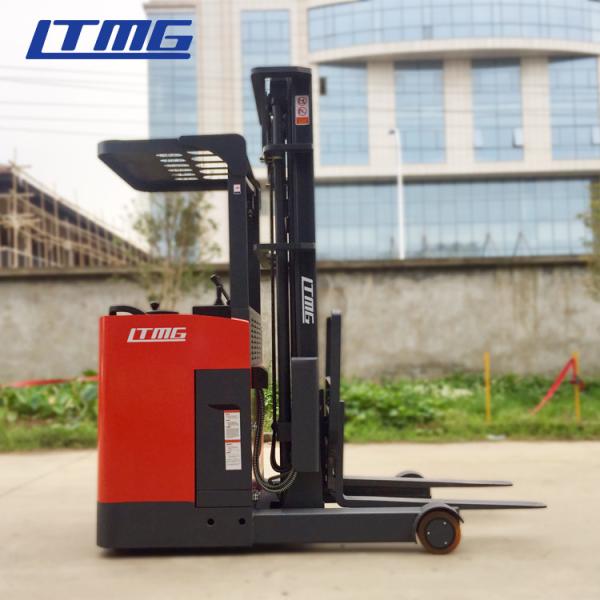

    Articulated 2 ton electric Forklift truck


    Narrow Aisle Articulated Electric Lift Truck 2 Ton With 7m Lifting HeightNarrow Aisle Articulated Electric Lift Truck 2 Ton With 7m Lifting Height


    About us


    LTMG Machinery Group Co.,Ltd is a leading and professional supplier of Earth moving Equipment, Material Handing Equipment and Quarry Equipment in China.
    After 16 years growing, now LTMG has more than 3000 staffs, which 230 engineers and technical researchers. So far have more than 50 exclusive distributors in the world and export to over 100 countries and regions in European, America, Mideast, Asia,Africa etc also OEM service to our clients.


    After-sale service


    All the products of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
    Detail clauses and policies please see to our website and product's quality certificate.
