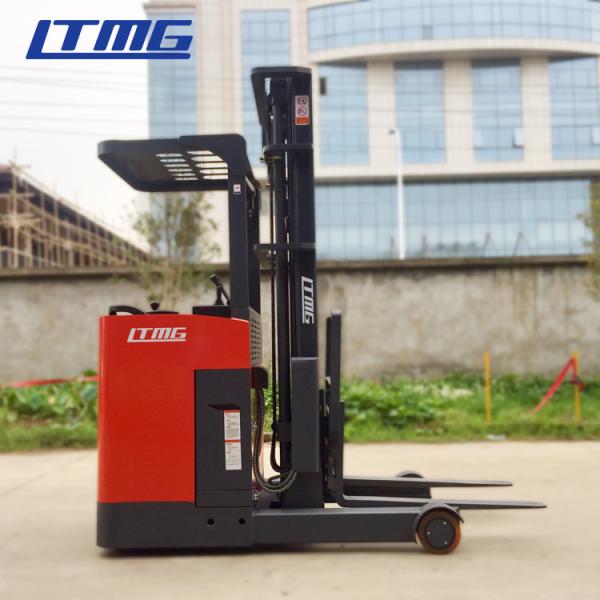

    2 Ton 11m Lifting Height Electric Reach Forklift Machine Sit On Type

    Seated type 2 ton electric reach stacker forklift with 11m lifting height


    The 2 ton electric reach forklift feature


    1. compact structure makes it's easy to be used in narrow aisle.

    2. stepless speed control, smoothly/controllable speed.

    3. reach distance up to 500mm.

    4. fork can be tilted forward 3 degree or backward 5 degree.

    5. intelligentized regenerative brake system


    The specification of 2 ton electric reach forklift


    Model No.FRB20
    StandardPower TypeBattery
    Operate TypeSeated
    Rated CapacityQ(kg)2000
    Load centerC(mm)500
    T &
    y R
    r I
    e m
    Wheel Type-Front/RearPU Polyurethane Solid tyre
    Front Wheelφ267×114
    Drive Wheelφ343×108
    Balance wheelφ180×76
    Tyres No. -front/rear (X=Drive wheel)2 / 1X /2
    Dimen
    sion
    Fork Tilt Angle----Upward/Downward--deg.α/β(º)3/5
    Lift Heighth1(mm)11000
    Height--Free Lifth2(mm)100
    Height---Mast Loweredh3(mm)2084
    Height-Mast Extended w/ Load-Backresth4(mm)3920
    Height-Overhead guard--mmh5(mm)2320
    Height--pedal to overhead guardh6(mm)1888
    Mast Min Ground Clearanceh7(mm)80
    Overall Length w/ fork11(mm)2472
    Reach Stroke12(mm)685
    Overall Widthb1/b2(mm)1258
    Tread Front/rearb3/b4(mm)1138
    Fork Dimensionsmm1070*100*45
    Width across forksb5(mm)247-780
    Aisle width for pallet 1000*1200Ast(mm)2938
    Aisle with for pallet 800*1200Ast(mm)2961
    Turning radiusWa(mm)1965
    Func
    tion
    Travel Speed -laden/unladenkm/h7.5/8.5
    Lift Speed -laden/unladenmm/s110/200
    Max. Gradeability -laden/unladen%≤10
    PowerDrive Motor typeAC
    Driving Motor (S2 60)kw5.5
    Lift motor typeDC
    Lift Motor (S3 15%)kw7.5
    Battery V/AHV/AH48/400
    WeightBatterykg650
    Service Weightkg2960
    SteeringSteering typeFull hydraulic
    Parking Brake modelMechanical Disc Braking
    Parking Operation typereleasing brake
    Service Brake-Operation typerelease braking
    OtherBattery Change typeForward loading
    Standard ConfigurationAC Drive Motor,Curis Controller,Shimadzu valve,Albright contractors;

    2 Ton 11m Lifting Height Electric Reach Forklift Machine Sit On Type2 Ton 11m Lifting Height Electric Reach Forklift Machine Sit On Type2 Ton 11m Lifting Height Electric Reach Forklift Machine Sit On Type


    After-sale service


    Nowadays we have been sell more than 60 countries.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.
