Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork

    Buy cheap Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork from wholesalers

    Buy cheap Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork from wholesalers
    • Buy cheap Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork from wholesalers
    • Buy cheap Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork from wholesalers

    Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : LT22
    Certification : ISO
    Price : USD 9999-11632 PER SET
    Supply Ability : 300 units month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

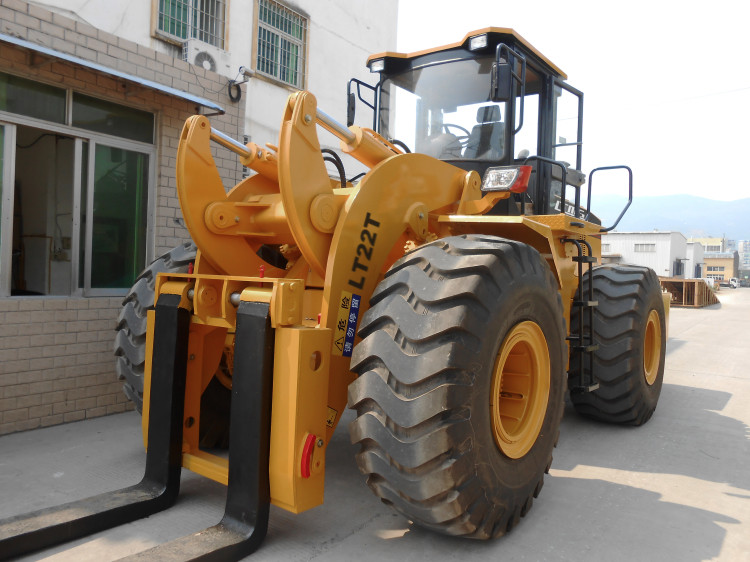

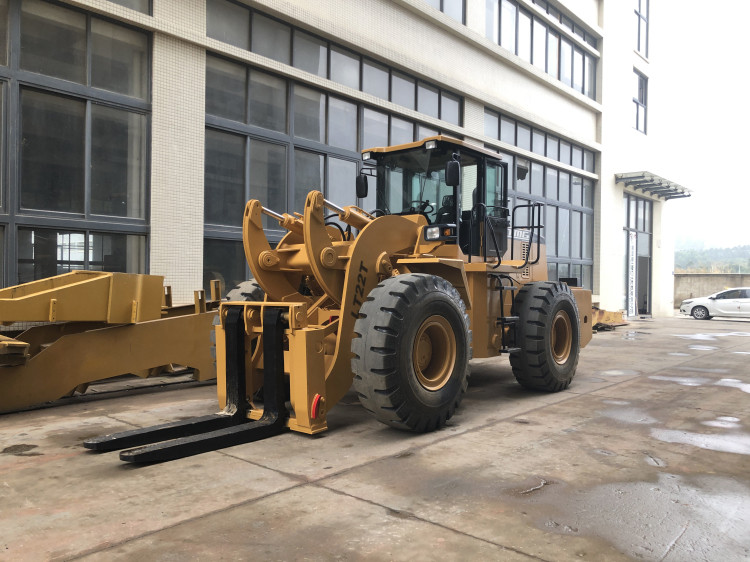

    Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork

    22 ton front end loader wheel loader with steel coil fork


    Standard Facility


    1. The operate weight is 23 T; it is 3T-5T heavier than other brands.

    2. 240HP/hr Top-grade Diesel Engine (WEICHAI engine), co-worker of German Deutz Company and AVL technology, Austria; 6 Cylinders, Turbocharged Intercooled, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency low noise and cooling technology, especially for using in dusty environment.

    3. Front tyre: 26.5-25-28PR tire.

    4. When full-load (22tons), the Max. Lifting height reaches 3.3m.

    5. High Pressure Hydraulic Hose and Fittings: “PARKER”-the heavy duty performers (worldwide market leader in No-Skive hose technology).


    Performance Features

    1. The frame is specially enlarged to withstand fork loading operations of harsh stone mining. Enabling longer service life through using more material to build up the strongest frame.

    2. Machine can work under various complex conditions with the high distance of the chassis from the ground and large departure angle of the balance weight.

    3. Single rocker arm and fixed shaft power shift transmission can guarantee large breakout force and lifting force.

    4. Hydraulic oil cooler keeps good thermal equilibrium of hydraulic system.

    5. The coaxes flow-amplified, hydraulic compensated steering system makes operation easy and performance reliable.

    6. Backing alarming system ensures high safety and reliability.

    7. In case equipped with bucket, the machine can be used for land levelling as well.


    The specification of 22 ton forklift loader

    ModelLT22T
    Operating weight23,000kg
    Engine modelWD10G240E21
    Rated engine power175KW
    Rated rotate speed2200r/nin
    Max.torque920N.m
    Max.dumping height3300mm
    Rated load22tons @3300mm height, 24tons @1600mm height
    NO.of shiftsForward 4 For Reverse 2
    Driving speed
    Forward/ReverseⅠ0-6.5km/h
    Forward/ReverseⅡ0-12.3km/h
    Forward/ReverseⅢ0-24km/h
    Forward/ReverseIV0-41km/h
    Grade ability≥25°
    Turning angle35°±1°
    Overall length8400mm
    Overall width3130mm
    Overall height3550mm
    Wheel base3550mm
    Track base2510mm
    Dimension of the fork1500*250*120mm
    Torque converterModel: YJ375X3 ratio:3.166
    Cycling time16s
    Tire type26.5-25

    Flameproof 22 Ton Outside Forklift Front End Loader With Steel Coil ForkFlameproof 22 Ton Outside Forklift Front End Loader With Steel Coil ForkFlameproof 22 Ton Outside Forklift Front End Loader With Steel Coil Fork

    After-sale service


    Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

    Detail clauses and policies please see to our website and product’s quality certificate.
