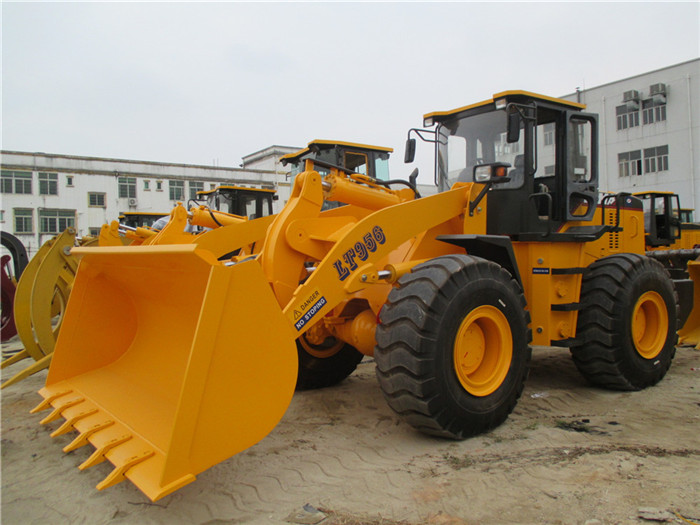

    front wheel loader boom loader LT956 loader with short wheelbase

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : LT956
    Certification : CE.ISO
    Price : 36800-42560 USD PER SET
    Supply Ability : 300 UNITS /month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    front wheel loader boom loader LT956 loader with short wheelbase

    front wheel loader boom loader LT956 loader with short wheelbase
    1.Cab with broad view, noise-isolation and vibration absorb-er meets all kinds of operation,which can be dismantled for Large space. Radio with MP3 function and speaker,the joystick control system(Optional) ensure easy operation and more comfortable
    2.Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation.
    3.Radio with USB key let drivers enjoy his working.
    4.The low vibration suspending seat is designed specially for the operator that improve the human feeling.
    5.Precise instrument system can supervise the parameters about fuel, water temperature and air pressure.
    6.Dust-proof gear selector is flexible shaft structure. which ensure flexible operation , reliable and accurate gear setting and long operating life.
    7.Big fan with wide blade and large radiator.
    8.Quick hitch for special needs such as the log grapple, block fork, snow blade, grass fork,enlarged bucket and teeth etc.
    9.High-performance engine is adopted for strong power, low fuel consumption,low construction and low noise.
    Hydraulic motor driving,easy to maintain.

    The specification of LT956 wheel loader

    Operating weight16.5T
    Rated load5T
    Bucket capacity3m³
    Engine modelWD10G220E23
    Rated engine power162KW
    Rated rotate speed2000r/min
    Max.torque745.3N.m
    Breakout force145KN
    Driving speed
    Forward Ⅰ0-11.5km/h
    Forward Ⅱ0-38km/h
    Reverse Ⅰ0-16km/h
    Gradeability28°
    Overall length7660mm
    Overall width2870mm
    Overall height3410mm
    Buchet width3000mm
    Wheel base2900mm
    Track base2260mm
    Min.ground clearance450mm
    Max.dumping height3000mm
    Max.dumping reach1300mm
    Torque converterSingle stage,4elements
    NO.of shifts1 Forwards 2/Reverse 1
    TransmissionPlanet-type
    Raise time≤6.8s
    Total≤12.5s
    Tyre type23.5-25




    After-sale service
    Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.

    Company imformation

    LTMG Machinery Group co.,ltd which was established in 2001,is a leading manufacturer of construction and material equipment. LTMG Machinery Group owns two manufacturing factories. The wheel loader factory locates in Xiamen City and the forklift factory already have 15,000 units forklifts annual production capacity with a 120,000 square meters production base.
