Brand Name : | LTMG |
Model Number : | FDS50 |
Certification : | CE, ISO |
Price : | usd 37152 per set |
Payment Terms : | T/T, L/C, Western Union, MoneyGram |
Supply Ability : | 300 units per month |
Delivery Time : | 30days |

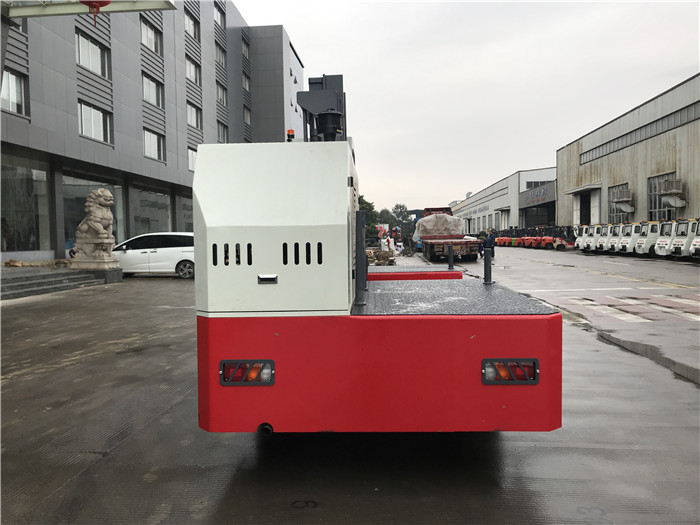

side loader forklift 5 ton ton diesel forklift for Steel plant
5 ton side loader forklift feature
Side Loader 5 Ton Diesel Side Loader Forklift Truck is suitable for narrow channel operations which has the advantageous to the long goods.It is mainly used in wood, metallurgy, construction, petrochemical, railway, wood, steel,cement and other long objects. It can be equipped with Chinese engine or Japanese engine which both provide strong power.
Color: Orange, Green or Customized.
Brand: LTMG or your designated brand.
Power source: Diesel, Gasoline, LPG, CNG, LPG&Gasoline
Tires: Pneumatic tires, Solid tires, White non-marking solid tires.
Engine: Mitsubishi/Xinchai/ISUZU/Xinchang/Volvo/Isuzu/Perkins/Cummins engine are optional.
Mast: Standard Wide-view 2 stage mast, Wide-view 2-stage Full free mast, Wide-view 3-stage Full free mast.
The specification of 5 ton forklift
Unit | FDS50 | |
Rated Capacity | kg | 5000 |
CG of cargo | mm | 600 |
Max.lift height | mm | 3600 |
Max.lift speed(laden) | mm/s | 350 |
Max.traveling speed(laden) | km/h | 24 |
Fork tilt angle(up/down) | ° | 3° / 5° |
Gradeablity | % | 20 |
Platform width | mm | 1300 |
Platform lenghth | mm | 5150 |
Fork lenghth | mm | 1220 |
Wheel base | mm | 2800 |
Frontal wheel track | mm | 1750 |
Rear wheel track | mm | 1750 |
Overall dimension(LxWxH) | mm | 5150*2100*2800 |
Operating weight | kg | 8000 |
Front tires | mm | 2-9.00-16-14PR |
Rear tires | mm | 2-9.00-16-14PR |
Manufacturer | ISUZU | |
Model | 6BG1 | |
Rated Power | kw | 82.3/2000 |
Company imformation
LTMG Machinery Group co.,ltd which was established in 2001,is a
leading manufacturer of construction and materials equipment. LTMG
the forklift factory already have 15,000 units forklifts annual
production capacity with a 120,000 square meters production base.
After sales service
Nowadays more than 100 agents around the world can supply LTMG
professional after-sale service.
All the product of LTMG supplied with one year or 2000 working
hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product
certificate
![]() |
