Brand Name : | LTMG |
Model Number : | LT15J |
Certification : | CE/ISO |
Price : | USD 61204-73424 PER SET |
Supply Ability : | 300 Set/Sets per Month |
Delivery Time : | 30days |

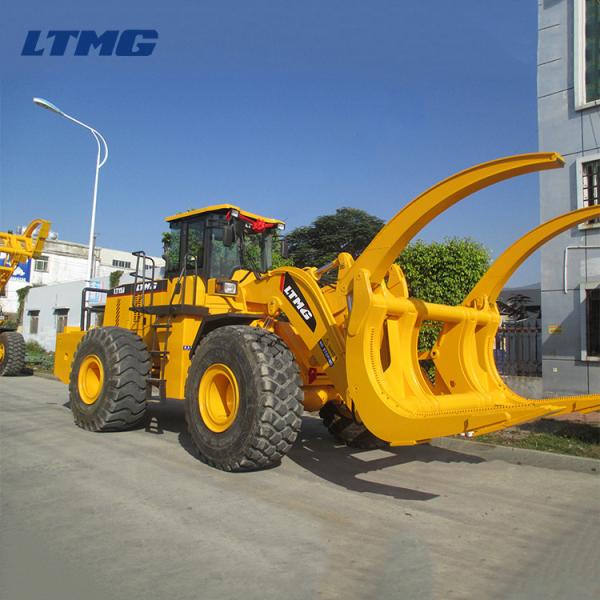

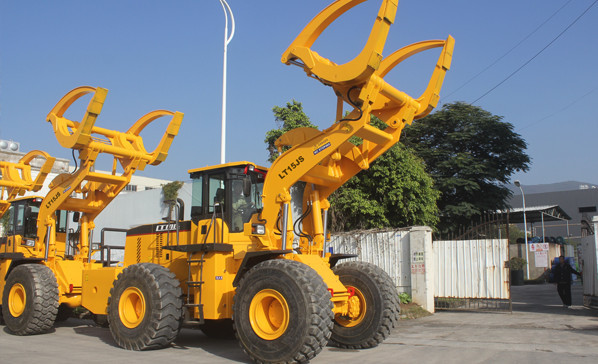

LTMG new model hydraulic wheel log loader 15 ton log loader with beilian transmission and Weichai engine | 199kw
Features of 15 ton log loader with beilian transmission and Weichai engine | 199kw engine
1). Exclusive Patent:6 proprietary technologies are applied in our log loaders make them more fuel-efficient and safety, such as Auto Cooling Technology on brake system improve the safty.And the dust-proof layer make the axle more durable.
2). Hydraulic systems: To adopt confluence of double pumps and
equivalents unloading hydraulic systems, rational use of engine
power, reduce energy consumption effectively. Independent
transmission oil and hydraulic oil cooling improve the hydraulic
system stability.
3). Novel appearance and humanized design: cabin with broad view.
Single(double)-handle pilot control system, electronic control
gearshift to ensure easy operation and more comfortable.
4). Details in Structure: Besides the special design of structure,full steel plate thickening, the thickness of lift arm and hinge plate reaches 60mm. Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.The exclusive dust-proof layer and sealed articulated points make the loader more durable.
The specifications of LTMA new model hydraulic wheel log loader 15 ton log loader with beilian transmission and Weichai engine | 199kw
Model | LT 15J |
Engine | Weichai |
Rated rotate speed | 2200r/nin |
Max.torque | 920N.m |
Max.dumping height | 3850mm |
Rated load | 15,000 KG |
NO.of shifts | |
Forward 4 For Reverse2 | |
Driving speed | |
0-7km/h | |
Forward/ReverseⅡ | 0-11km/h |
Forward/ReverseⅢ | 0-23km/h |
Forward/ReverseIV | 0-38km/h |
Grade ability | ≥25° |
Turning angle | 35° |
Overall length | 9500mm |
Overall width | 3230mm |
Overall height | 3800mm |
Track base | 2410mm |
15 ton log loader with beilian transmission and Weichai engine | 199kw
After-sale service
Nowadays we have been sell more than 100 countries. All the
products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not
caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's
quality certificate.
![]() |
