LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer

Xiamen LTMG Co., LTD
Contact Now
    Buy cheap LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer from wholesalers

    Buy cheap LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer from wholesalers
    • Buy cheap LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer from wholesalers
    • Buy cheap LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer from wholesalers
    • Buy cheap LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer from wholesalers
    • Buy cheap LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer from wholesalers

    LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : LT45
    Certification : CE,ISO
    Price : USD 14928-17826 PER SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 600 units per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer

    CE Certificated 700kg Mini Skid Steel Loader With Water Cooled Engine


    Features:

    1) Excellent reach & lift height for truck loading (vertical path);
    2) More than 20 series attachments for option: pallet fork, swing blade, utility fork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger, cultivator, and tooth bucket, etc;

    3) World famous hydraulic systems from America, Japan and Italy;

    4) CE and ISO 9001 certificated;

    5) Small skid loader can do much simplified manual labor, improve efficiency;

    6) Randomly and quickly change or attach various working devices at the job site;

    7) Easy to operate (no special training required);

    8) High work efficiency.


    Advantages:

    1) With wide application and strong versatility in applications such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and even cabins, where venues are narrow and operations are frequently changed.

    2) High-intensity cab that meets FOPS/ROPS international safety standards, driving space is bigger and more comfortable;

    3) Integrated control panel design, complete machine performance parameters at a glance, to ensure that you control the entire machine when operation.


    Speicification:

    ItemDataItemData
    Max working height(A)3490mmLoading capacity700KGS
    Max pin height(B)3028mmWeight2860kg
    Max height on bucket level state(C)2814mmEngineDiesel engine
    Max dumping height (D)2266mmRated speed2500r/min
    Max Dumping distance(F)437mmType of engineFour cylinder, water-cooling, four-stroke
    Wheel base(G)1044mmRated power45KW
    Total height(H)1979mmFuel consumption rate on standard240g/KW·h
    Ground clearance196mmFuel consumption rate on max torque238g/KW·h
    Overall length without bucket(K)2621mmNoise117dB(A)
    Total length(L)3400mmGenerator power500W
    Skip width(M)1720mmVoltage12V
    Total width(W)1665mmStorage battery105AH
    Tread width to center line (P)1425mmSpeed0-10 Km/h
    Tire’s thickness N)240mmDrive modeHydrostatic four-wheel drive
    Departure angle(α)19°Tire10-16.5
    Bucket dump angle(β)41°Hydraulic pump flow for running110L/min
    Retracting angle(θ)18°Hydraulic pump flow for working50L/min
    Turn radius(R)2056mmSystem pressure15MP

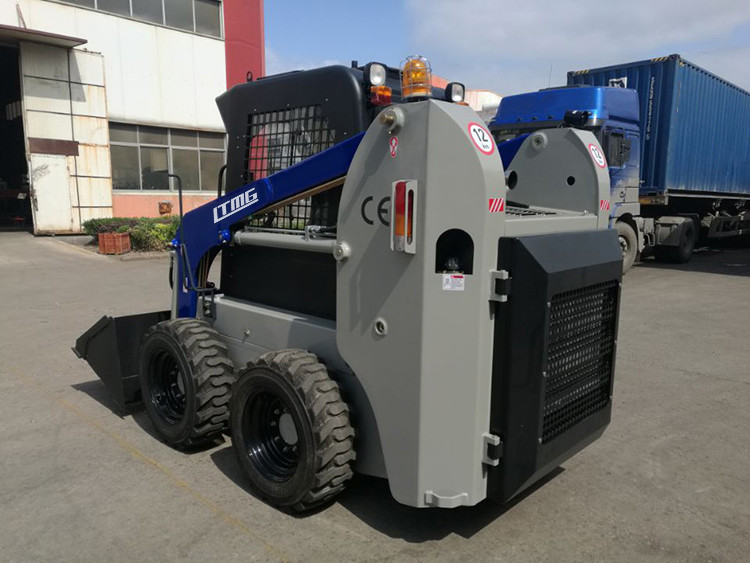

    Pictures:


    LTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steerLTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steerLTMG CE Certificate Mini Track Skid Loader With Water Cooled Engine mini skid steer


    After-sale service:

    Nowadays we have been sell more than 100 countries. LTMG Machinery is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
    Detail clauses and policies please see to our website and product’s quality certificate.
