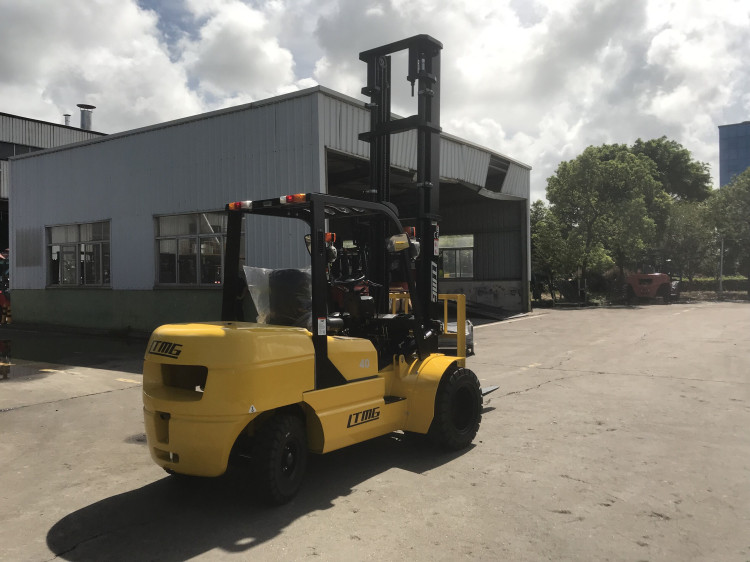

    4 Tonne Four Wheel Drive Forklift , Double Mast Forklift With Fork Positoner

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD40
    Certification : CE, ISO
    Price : USD 10897-11243 PER SET
    Supply Ability : 300 units per month
    Delivery Time : 25days after received your deposit
    • Product Details
    • Company Profile

    4 Tonne Four Wheel Drive Forklift , Double Mast Forklift With Fork Positoner

    4 tonne four wheel fork lift /diesel forklift with fork positoner

    Feature


    1. With Chinese Xichai engine, economical but powerful enough.Mitsubishi engine is optional.
    2. Transmission: with TCM technology. China famous Zhongnan brand transmission,
    3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low torsional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.
    4. The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.

    5. with imported parts, to ensure high quality


    The specification of 4 ton diesel forklift


    FD40T Technology Specification
    Features1ManufacturerLTMG
    2ModelPower shift T/MFD40T
    3Load capacitykg4000
    4Load centermm500
    5Power unitDiesel
    6Operator typeDriver/seat
    7Tire typeFront/rearPneumatic
    8WheelFront/rear2/2
    Dimension9Max. lifting heightmm3000
    10Free liftmm150
    11Fork sizeL*W*Tmm1070*150*50
    12Tilt rangeMast forward/backwarddeg6/12
    13Overall length(without fork)mm2870
    14Total widthmm1365
    15Mast height (fork lowering)mm2150
    16Overall height fork raisedWith backrestmm4250
    17Height to head guardmm2140
    18Turning raduis(outside)mm2530
    19Front face of fork to front axlemm485
    20Min. right angle stacking aisle
    without load length&clearence
    mm2940
    Performance21SpeedMax Travelling full/no loadkm/h16.5/18
    22Lifting full/no loadmm/s380/480
    23Lowering full/no loadmm/s450/420
    24Max.drawbar pullPower shift T/M full/no loadkg2100/1000
    Manual shift T/M full/no loadkg2100/1000
    25Gradeability at 1.6km/hPower shift T/M full/no load%18/20
    Manual shift T/M full/no load%18/20
    Weight26Truck weightkg5050
    27Weight distributionFull load front/rearkg7890/1140
    28No load Front/rearkg1810/3240
    Frame29TiresNumberfront/rear2/2
    30Modelfront axle250-15-16PR
    31rear axle6.50-10-10PR
    32Wheelbasemm1800
    33TreadFront/rearmm1120/970
    34Ground clearenceAt lowest point(mast)mm120
    Framemm135
    35BrakeService brakeHydraulic-foot pedal
    Parking brakeMechanical-hand lever
    Engine36BatteryVoltage/capacityV/AH12/80
    37EngineModelMITSUBISHI S4S
    Rated powerkw/rpm35.4/2250
    Rated torqueN.m/rpm170/1700
    Number of cylinders4
    PlacementL3.059
    Fuel tank capacityL70
    38TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M1-1 power shift T/M 2-2 manual shift T/M
    39Operating pressureHydraulic system pressurekg/cm²180

    4 Tonne Four Wheel Drive Forklift , Double Mast Forklift With Fork Positoner4 Tonne Four Wheel Drive Forklift , Double Mast Forklift With Fork Positoner


    After-sale service
    Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
    All the products of LTMG supplied with one year or 2000 workling hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.

    Company imformation

    LTMG Machinery Group co.,ltd which was established in 2001,is a leading manufacturer of construction and materials equipment. LTMG the forklift factory already have 15,000 units forklifts annual production capacity with a 120,000 square meters production base.
