Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment

Xiamen LTMG Co., LTD
Contact Now
    Buy cheap Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment from wholesalers

    Buy cheap Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment from wholesalers
    • Buy cheap Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment from wholesalers
    • Buy cheap Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment from wholesalers
    • Buy cheap Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment from wholesalers
    • Buy cheap Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment from wholesalers

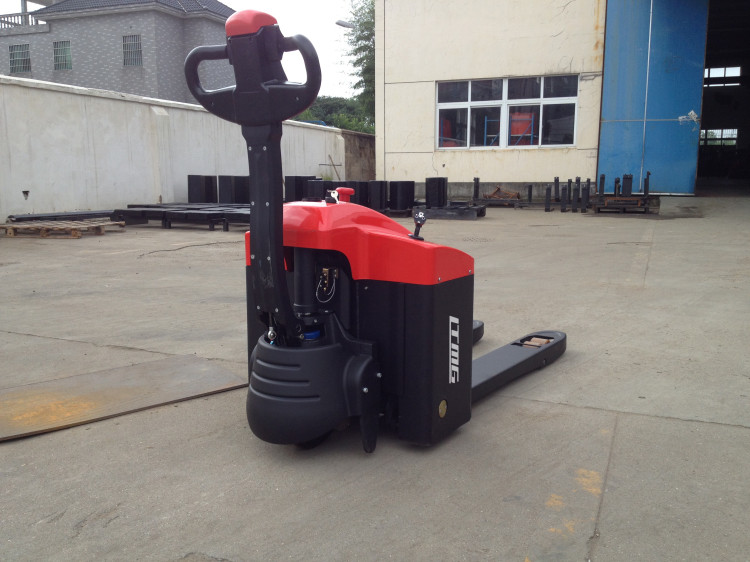

    Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FEP 0.5T
    Certification : CE, ISO
    Price : USD 956 PER SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 unit per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment


    LTMG brand Convenient 500kg self-loading electric pallet stacker price


    500kg self-loading electric pallet stacker feature

    Small Self Loader Stacker/Self Lifting Stacker, hot sale for Euro market, with small overall dimension, designed for loading and unloading cargo/pallet for van.

    1.Steering chain auxiliary device.
    2.With foot brake,more stable,
    3.Sealed batteries free of maintenance safe operation and no pollution.
    4.Explosion-proof valve design,down more stable and reliable.


    self-loading electric pallet stacker Specification

    Features

    1.1

    Model



    CDD05Z

    1.2

    Power unit



    Battery

    1.3

    Rated capacity

    Q

    kg

    500

    1.4

    Load center

    c

    mm

    400

    1.5

    Wheel base

    L0

    mm

    758

    1.6

    Front track base

    W1

    mm

    380

    1.7

    Rear track base

    W2

    mm

    665

    1.8

    Operator type





    Manual Driving,Electrical Lifting







    Tyres

    2.1

    Tyre type(Front/Rear)





    Nylon

    2.2

    Steering/Loading wheels





    2/2

    2.3

    Loading wheel size



    mm

    Φ70×60

    2.4

    Steering wheel size



    mm

    φ100×45







    Demension

    3.1

    Lowered Fork height

    H2

    mm

    85

    3.2

    Max.lifting height

    H

    mm

    1300

    3.3

    Max.fork width

    W3

    mm

    535

    3.4

    Fork length

    L2

    mm

    1150

    3.5

    Fork width×Fork thickness

    B

    mm

    155×60

    3.6

    Overall length

    L1

    mm

    1570

    3.7

    Total width

    W

    mm

    786

    3.8

    Overall height(Mast closed)

    H1

    mm

    1597

    3.9

    Overall height(Fork lowering)

    H3

    mm

    1618

    4.0

    Min.turning radius

    Wa

    mm

    1100







    Performance

    4.1

    Lifting speed



    mm/s

    55

    4.2

    Lowering speed



    mm/s

    70

    4.3

    Lifting motor power



    kW

    DC0.8

    4.4

    Battery voltage



    V

    12

    4.5

    Battery capacity



    Ah

    45







    Weight

    5.1

    Battery weight



    kg

    13.5

    5.2

    Operating weight(with battery)



    kg

    245


    Convenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting EquipmentConvenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting EquipmentConvenient 500kg Electric Pallet Forklift , Self - Loading Pallet Lifting Equipment

    After-sale Service


    LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
    All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please check our website and product certificate.
