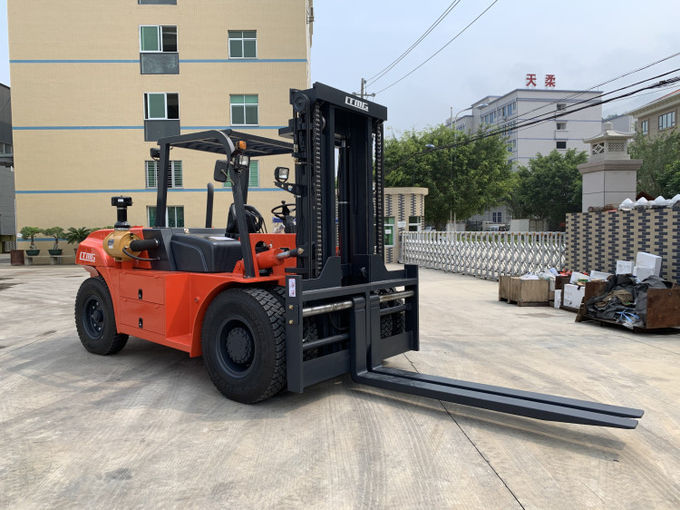

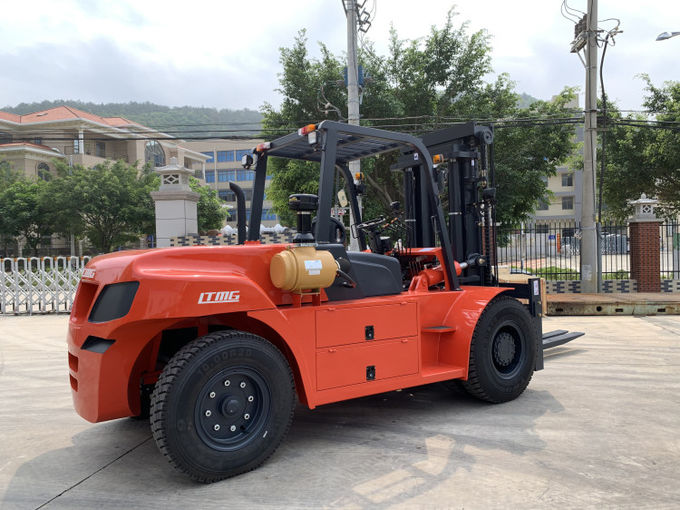

    Diesel Powered Forklift 12 Ton , Container Mast Forklift With Fork Positioner

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD120
    Certification : CE, ISO
    Price : USD 43362-45000 PER SET
    Payment Terms : T/T, L/C
    Supply Ability : 200 units per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Diesel Powered Forklift 12 Ton , Container Mast Forklift With Fork Positioner

    container forklift 12 ton diesel forklift truck with fork positioner,cabin


    Feature


    1. Adopt Cummins, engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.

    2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.

    3. Adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.

    4. Variable speed control valve matched with neutral starter, the machine start more secure.

    5. Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structrue bridge shell support, increase the load capacity and service life.


    The specification of 12 ton diesel forklift


    Load Centremm600
    Lift Heightmm3000
    Fork SizeL×W×Tmm1500×180×100
    Mast Tilt AngleF/RDeg6°/12°
    Front Overhang (Wheel center to fork face)mm770
    Ground Clearance(Bottom of mast)mm250
    Overall DimensionLength to face of fork(Without fork)mm4700
    Overall Widthmm2200
    Mast Lowered Heightmm3100
    Overhead Guard Heightmm2590
    Turning Radius (outside)mm4450
    Min. intersecting aislemm4200
    SpeedTravel (Full load)km/h25
    Lifting(Full load)mm/s290
    Max.Gradeability (No load/Full load)%20
    Tire (solid tire)Frontmm9.00-20-14PR
    Rearmm9.00-20-14PR
    Wheelbasemm3200
    Service weightkg14500
    BatteryVoltage/CapacityV/Ah(12V/80Ah)x2
    EngineModel6BT5.9-C130
    ManufactureXICHAI
    Rated output/r.p.m.kw97/2200
    Rated torque/r.p.m.N·m560/1500
    No.of Cylinder6
    Displacementcc5900
    Fuel Tank CapacityL150
    TransmissionTypePowershift
    StageFWD/RVS2/2

    Diesel Powered Forklift 12 Ton , Container Mast Forklift With Fork Positioner

    Diesel Powered Forklift 12 Ton , Container Mast Forklift With Fork Positioner

    Diesel Powered Forklift 12 Ton , Container Mast Forklift With Fork Positioner


    After-sale Service


    Nowadays more than100 agents around the world can supply LTMG professional after-sale service.
    All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please check our website and product certificate.
