    Hydraulic Transmission 4 Ton Forklift Truck Diesel Power Unit With Three Mast

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD40
    Certification : CE/ISO
    Price : USD 11579-12950 PER SET
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 400 Set/Sets per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Hydraulic Transmission 4 Ton Forklift Truck Diesel Power Unit With Three Mast

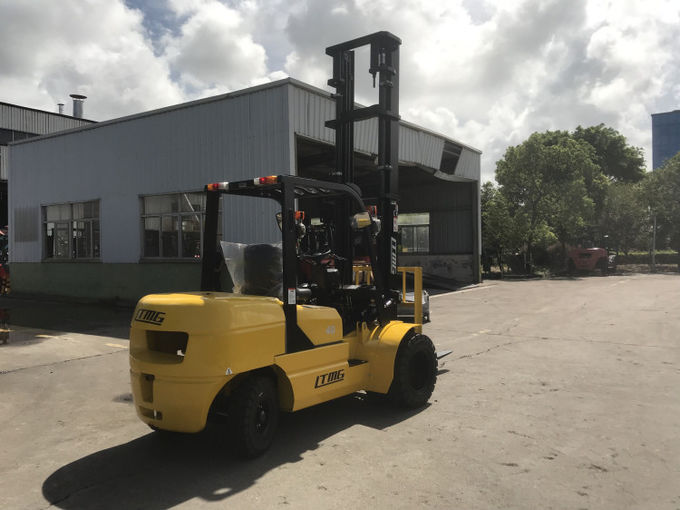

    Hydraulic transmission 4 ton diesel forklift with three mast


    Features of 4 ton diesel forklift truck


    1.Engine: Powerful Chinese engine with environmental performance.

    Or Isuzu, Mitsubishi engines are optional.

    2.Tire type: Pneumatic tires are easy to installation and maintenance.

    Or solid tires are optional.

    3.Color: LTMG diesel forklift color is decides by the customer to satisfy different customers' easthetics.

    4.Attachments: can be equipped as customer's requirements, such as forklift rotator,paper roll,clamp etc.

    5.LTMG lift trucks are designed for the operator to be more productive and require less downtime for maintenance.


    Specifications of Hydraulic transmission 4 ton diesel forklift with three mast


    ManufacturerLTMG
    ModelPower shift T/MFD40T
    Manual shift T/MFD40C
    Load capacitykg4000
    Load centermm500
    Power unitDiesel
    Operator typeDriver/seat
    Tire typePneumatic
    WheelFront/rear2/2
    Max. lifting heightmm3000
    Free liftmm150
    Fork sizeL*W*Tmm1070*150*50
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork)mm2870
    Total widthmm1365
    Mast height (fork lowering)mm2150
    Overall height fork raisedWith backrestmm4250
    Height to head guardmm2140
    Turning radius(outside)mm2530
    Front face of fork to front axlemm485
    Min. right angle stacking aisle
    without load length&clearance
    mm2940
    SpeedMax Travelling full/no loadkm/h16.5/18
    Lifting full/no loadmm/s380/480
    Lowering full/no loadmm/s450/420
    Max.drawbar pullPower shift T/M full/no loadkg2200/1000
    Manual shift T/M full/no loadkg2200/1000
    Gradeability at 1.6km/hPower shift T/M full/no load%18/20
    Manual shift T/M full/no load%18/20
    Truck weightkg5050
    Weight distributionFull load front/rearkg7890/1140
    No load front/rearkg1810/3240
    TiresNumberfront/rear2/2
    Modelfront axle250-15-16PR
    rear axle6.50-10-10PR
    Wheelbasemm1800
    TreadFront/rearmm1120/970
    Ground clearanceAt lowest point(mast)mm120
    Framemm135
    BrakeService brakeHydraulic-foot pedal
    Parking brakeMechanical-hand lever
    BatteryVoltage/capacityV/AH12/80
    EngineModelISUZU 4JG2
    Rated powerkw/rpm44.8/2450
    Rated torqueN.m/rpm186/1800
    Number of cylinders4
    PlacementL3.059
    Fuel tank capacityL70
    TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M1-1 power shift T/M
    2-2 manual shift T/M
    Operating pressureHydraulic system pressurekg/cm²180

    4 ton diesel forklift truck

    Hydraulic Transmission 4 Ton Forklift Truck Diesel Power Unit With Three Mast

    Hydraulic Transmission 4 Ton Forklift Truck Diesel Power Unit With Three Mast

    Hydraulic Transmission 4 Ton Forklift Truck Diesel Power Unit With Three Mast


    About us


    LTMG Machinery Group Co.,Ltd is a leading and professional supplier of Earth moving Equipment, Material Handing Equipment and Quarry Equipment in China.
    After 16 years growing, now LTMG has more than 3000 staffs, which 230 engineers and technical researchers. So far have more than 50 exclusive distributors in the world and export to over 100 countries and regions in European, America, Mideast, Asia,Africa etc also OEM service to our clients.


    After-sale service


    All the products of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
    Detail clauses and policies please see to our website and product's quality certificate.
