    4x4 ATV Log Loader , 12 Ton Hydraulic Log Grapple Loader With Air Conditioner

    good performance 4x4 ATV log loader 12 ton grapple log loader with air conditioner


    Features of 12 ton grapple log loader

    1. Using direct injection diesel engine as power, with easy startup and low oil consumption
    2. Using special drive axle, with strong ability to overcome obstacle
    3. Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space
    4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
    5. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
    6. Hydraulic mechanical transmission,can make full use of engine power
    7. Using four -wheel -drive,low wide-based off-road tires
    8. A single pipeline hydraulic brake system up for wheel brake shoe


    The specifications of good performance 4x4 ATV log loader 12 ton grapple log loader with air conditioner

    Engine modelWD10G270E201
    Rated rotate speed2200r/nin
    Max.torque920N.m
    Rated load12,000 KG
    NO.of shiftsForward 4 For Reverse 2
    Driving speed
    Forward/ReverseⅠ0-6.5km/h
    Forward/ReverseⅡ0-12.3km/h
    Forward/ReverseⅢ0-24km/h
    Forward/ReverseIV0-41km/h
    Grade ability≥25°
    Turning angle35°±1°
    Overall length8600mm
    Overall width3130mm
    Overall height3550mm
    Wheel base3550mm
    Track base2510mm
    Torque converterModel: YJ375X3 ratio:3.166

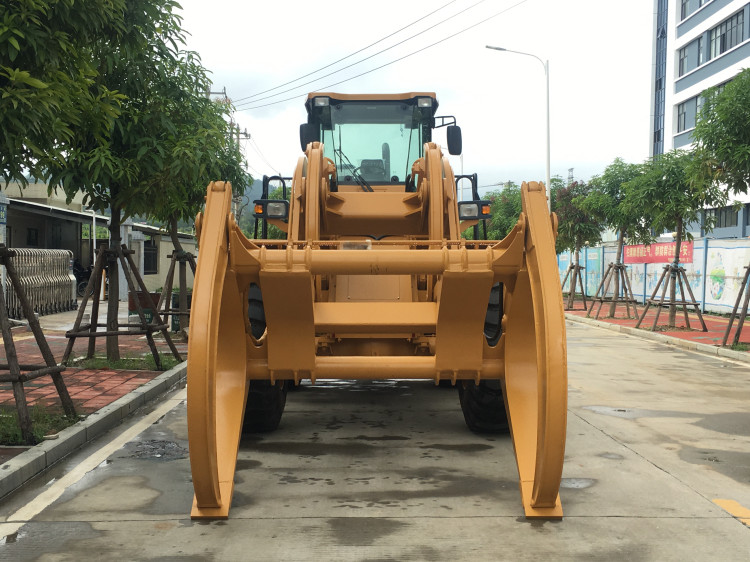

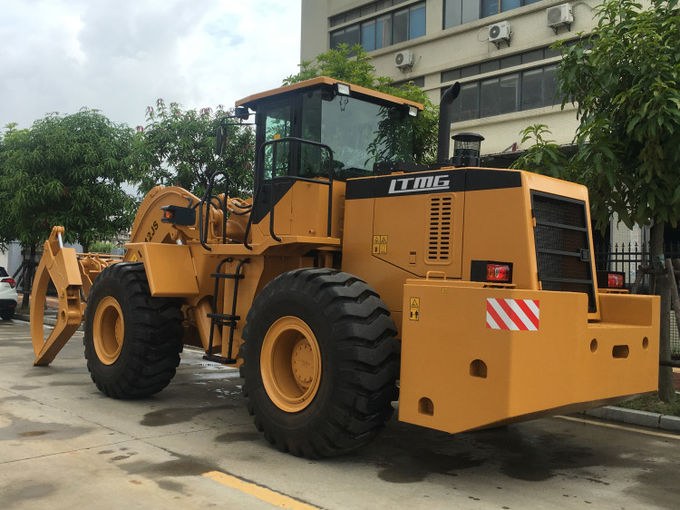

    12 ton grapple log loader

    4x4 ATV Log Loader , 12 Ton Hydraulic Log Grapple Loader With Air Conditioner

    4x4 ATV Log Loader , 12 Ton Hydraulic Log Grapple Loader With Air Conditioner

    After-sale service
    Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

    Detail clauses and policies please see to our website and product's quality certificate.
