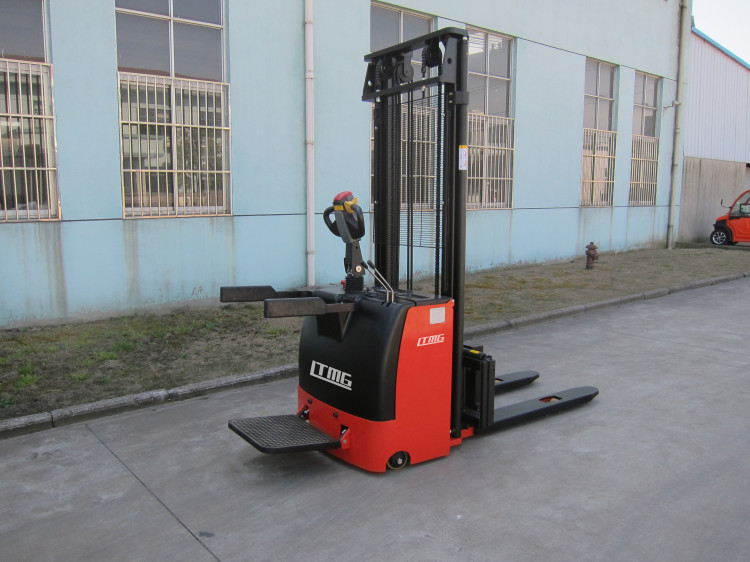

    Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : ERB15
    Certification : CE/ISO
    Price : USD 2043-2631 PER SET
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity

    Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO

    Features of Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO

    1, Lift height: 3000-3600mm;
    2, 24V big capacity battery and low noise;
    3, Non-pollution environmental friendly;
    4, AC controller and CE ISO high quality certificated.
    5, 4 hour operation at full charge
    6, emergency switch
    7, Top-Quality AC control system
    8, large capacity battery
    9, Smooth speed control from ZAPI/CURTIS
    10, powerful efficient AC traction system
    11, Powerful and Intelligent Performance


    The specifications of Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO

    Model ERB15
    Mast type 2-Stage STD
    Load capacitykg1800
    Load centermm600
    Wheel basemm1310
    Operating type Walkie/Stand on
    Wheels
    Wheel type PU
    Wheel quantity driving wheel/Balance wheel/Bearing wheel 2001-2-4
    Demension
    Standard lift heightmm3000
    Lowered fork heightmm55
    Fork size(length/width/thickness)mm1070(920/1150/1200)/100/40
    Overall lengthmm1970/2390
    Overall widthmm1170/1320/1470/1650
    Outside with between legsmm1170/1320/1470/1650
    Inside with between legsmm970/1120/1270/1450
    Min.turning radiusmm1565/1975
    Min.aisle width for pallets 800×1200mm2230/2560
    Min.aisle width for pallets 1000×1200mm2260/2585
    Min.groud clearancemm50
    Performance
    Travel speed,laden/unladenkm/h5/5.8
    Lift speed,laden/unladenmm/s80/120
    Travel speed,laden/unladenmm/s80/90
    Gradeability,laden/unladen%5/8
    Electric configuration
    Drive motor /Lift motor/Steering motorkwAC1.5/DC3.0/DC0.15
    Battery voltageV24
    Battery capacityAh280
    Brake Electromagnetic/Regenerative
    Controller CURTIS
    Weight
    Battery weightkg235
    Service weight with batterykg1370

    Automatic lifting limit proximity switch long life 1.5 ton electric stacker 1500kg battery pallet stacker with CE , ISO


    Automatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg CapacityAutomatic Lifting Long Life Electric Pallet Stacker Battery Powered 1500kg Capacity


    After-sale service
    Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

    Detail clauses and policies please see to our website and product's quality certificate.
