    Industrial Counterbalance Pallet Stacker , Powered Pallet Truck Forklift

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : ERB15
    Certification : CE/ISO
    Price : USD 2043-2631 PER SET
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Industrial Counterbalance Pallet Stacker , Powered Pallet Truck Forklift

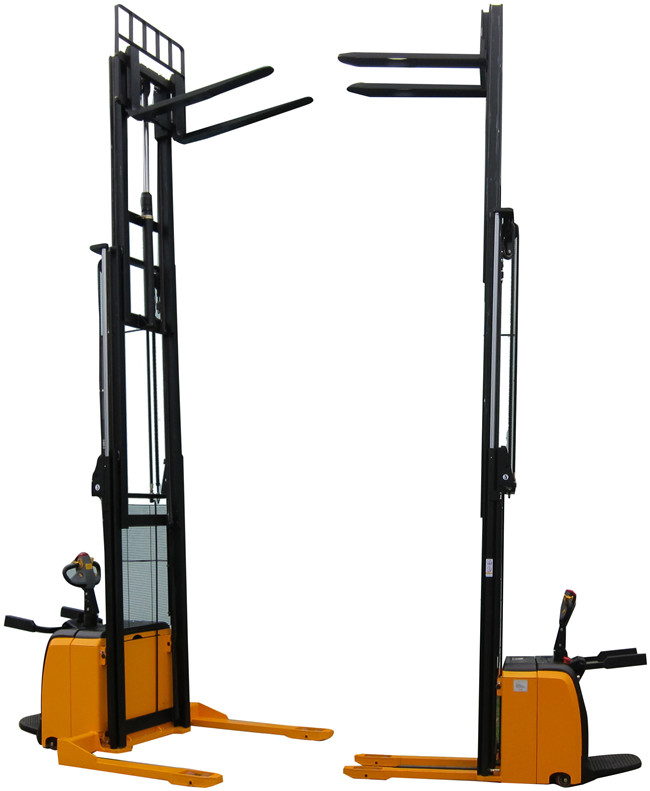

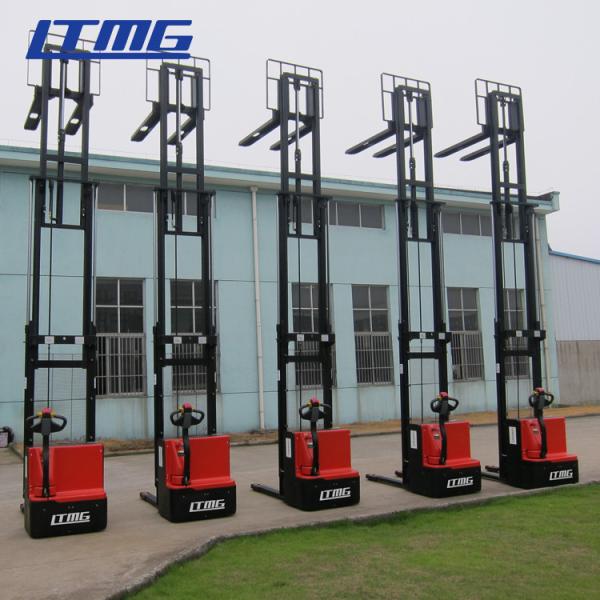

    Industrial Walkie Stacker Powered Pedestrian 3m Lifting Battery Full Electric Pallet Stacker


    Features of Industrial Walkie Stacker Powered Pedestrian 3m Lifting Battery Full Electric Pallet Stacker
    1: Self-Diagnostics provided direct fault code readout during operation and start up, which is ease of service andmaintenance.
    2: 24V/240AH maintenance free battery contributes to strong power and easier operation, meeting most requirements for light and medium duty applications
    3: Built-in charger practically eliminates contamination entry, which can result in failure.

    4: Handle is utilized for easier operation and less turing radius, suitable for confined space and narrow aisle.


    The specifications of Industrial Walkie Stacker Powered Pedestrian 3m Lifting Battery Full Electric Pallet Stacker

    Feature
    Model LTMG ERB215
    Type Narrow legs
    Load centermm600
    Operating type Walk
    Wheels
    Wheel quantity driving wheel/Balance wheel/Bearing wheel 2001-2-4
    Dimension
    Lowered fork heightmm85
    Fork size(length/width/thickness)mm1150/180/60
    Overall lengthmm1940
    Overall widthmm850
    Outside with between legsmm600
    Inside with between legsmm230
    Min.aisle width for pallets 800×1200mm2180
    Min.aisle width for pallets 1000×1200mm2210
    Min.groud clearancemm30
    Performance
    Travel speed,laden/unladenkm/h5/6
    Lift speed,laden/unladenmm/s95/130
    Travel speed,laden/unladenmm/s110/100
    radeability,laden/unladen%5/8
    Electric configuration
    Drive motor /Lift motor/Steering motorkwAC1.5/DC3.0/DC0.15
    Battery capacityAh240
    Brake Electromagnetic/Regenerative
    Controller CURTIS
    Weight
    Battery weightkg235

    Industrial Walkie Stacker Powered Pedestrian 3m Lifting Battery Full Electric Pallet Stacker


    After-sale service
    Nowadays we have been sell more than 100 countries. All the products of LTMG supplied withone year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

    Detail clauses and policies please see to our website and product's quality certificate.
