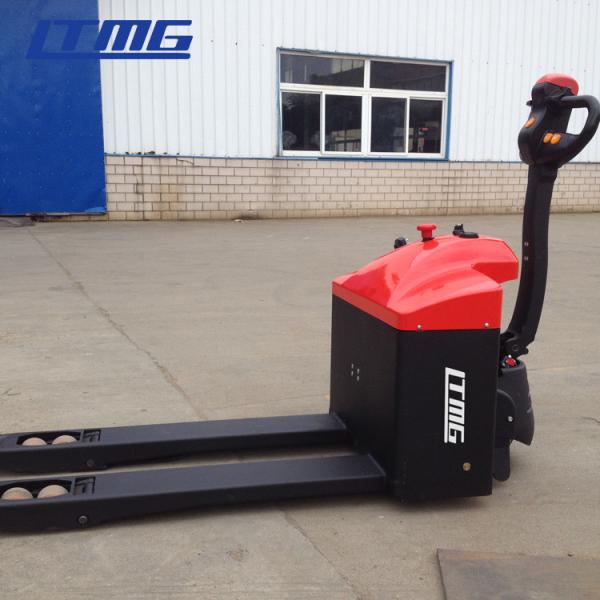

    1.5 Ton Small Electric Powered Pallet Truck Pallet Trolley Jack 8 Hours Working Time

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FEP15
    Certification : CE, ISO
    Price : usd 831-936 per set
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 unit per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    1.5 Ton Small Electric Powered Pallet Truck Pallet Trolley Jack 8 Hours Working Time

    China LTMG brand 1.5 ton small electric powered pallet truck with CE

    1.5 ton powered pallet truck feature

    Short turning radius and low gravity center.
    Handle with turtle speed switch makes low speed control more precise.
    Pneumatic spring in the handle, by releasing, it will reset slowly.
    Four colored LED battery meter.
    Germany imported waterproof micro switch, adapting to cold, wet, dust and other harsh environments.
    Yongci motor drive systems with small size,light weight, low loss and high efficiency.


    The specification of 1.5 ton powered pallet truck

    FULL ELECTRIC PALLET TRUCKMODEL
    ItemSpecificationUnitFEP15T
    1GeneralRated capacityKg1500
    2Load centermm600
    3Drive type Standed
    4Motor brake Electromagnetic
    5Load distance (centerline of front axle to front face of forks)mm963/1054
    6Battery weightKg48
    7Self weight (with battery)Kg286
    8Full Load per Axle - Driving side / bearing sideKg675/1115
    9Empty Load per Axle - Driving side / bearing sideKg230/60
    10DimensionsLifting Height (standard)mm120
    11Fork min. ground clearancemm85
    12Adjust width of fork (standard)mm520/650
    13Fork sizemm47/160/1220
    14Minimum ground clearancemm24
    15Overall lengthmm1660
    16Overall widthmm700
    17Overall height (including handle )mm1235
    18Bodywork heightmm677
    19Wheel tread (front/rear)mm490/490
    20Supporting wheel treadmm1310
    21Minimum turning radiusmm1976
    22Stacking right angle aisle width (1200mm pallet)mm1976
    23PerformanceMax. driving speed (full)Km/h5
    24Max. driving speed (empty)Km/h5.2
    25Max. lifting speed (full)mm/s27
    26Max. lifting speed (empty)mm/s35
    27Max. declining speed (full)mm/s42
    28Max. declining speed (empty)mm/s27
    29Gradeability full/empty%5-8
    30Steering angle°205
    31Sound level at the driver's eardB(A)<70
    32WheelWheels material Polyurethane
    33Wheel number (front/rear) 4-3
    34Drive wheel (mm)mmφ252X89
    35Load wheel (mm)mmφ74X70
    36Balance wheel (mm)mmφ100X40
    37Power and ControlTravel motorKW0.8
    38Lift motorKW0.6
    39VoltageV2X12
    40Battery capacityAh80
    41Power Electric


    1.5 Ton Small Electric Powered Pallet Truck Pallet Trolley Jack 8 Hours Working Time1.5 Ton Small Electric Powered Pallet Truck Pallet Trolley Jack 8 Hours Working Time1.5 Ton Small Electric Powered Pallet Truck Pallet Trolley Jack 8 Hours Working Time

    After-sale service
    Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detailed clauses and policies please see to our website and product’s quality certificate.
