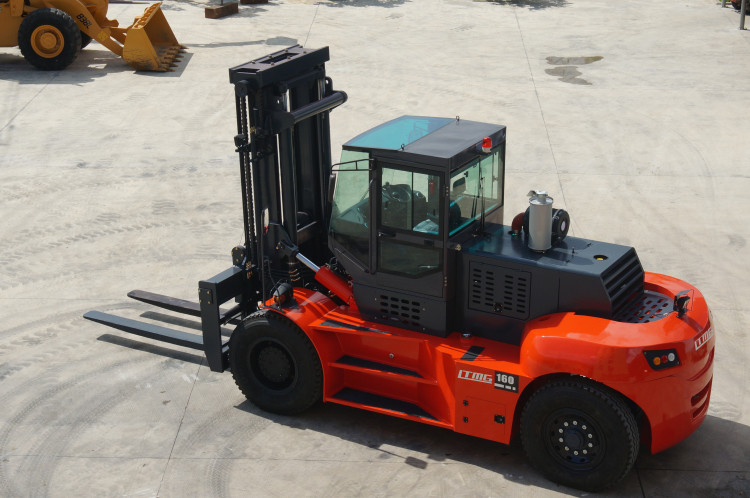

Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160

    Buy cheap Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160 from wholesalers

    Buy cheap Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160 from wholesalers
    • Buy cheap Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160 from wholesalers
    • Buy cheap Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160 from wholesalers
    • Buy cheap Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160 from wholesalers

    Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD160
    Certification : CE/ISO
    Price : USD 70736-83164 PER SET
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160

    chinese new condition diesel engine 16 ton hydraulic forklift | FD160

    Features and Advantages of 16 ton hydraulic forklift | FD160
    Highlights:
    Flexible and efficient operation
    The whole machine is compact, small in shape and only 5.1 m on the turning radius.
    The core technologies such as proprietary flow sharing, the key position of the cargo fork, and the microdynamic control are fast, the operation speed is good, and the efficiency is high.

    Safe and reliable, use save heart
    After years of crane development experience, the control system of the industry product is perfected and upgraded, and the maximum realization is the active protection.
    Industry top allocation, professional match optimization and systematic evaluation test, effectively guarantee the reliability of the product.

    Economic and environmental protection, the cost savings
    It has been used for many years, and the whole machine is light weight and low fuel consumption.
    The proprietary door is able to recover the technology and save 20% (optional) fuel economy.

    People-oriented, riding comfortably
    The professional design and man-machine engineering simulation analysis, reasonable decorate a variety of climbing, access channel and manipulate the position, to achieve the perfect combination of functionality and aesthetics, pleasing generous, easy to use.
    Panorama driver room, high power cooling air conditioning, high definition rebus image (optional), with human-centered detail design, riding in comfort.


    The specifications of chinese new condition diesel engine 16 ton hydraulic forklift | FD160

    GeneralManufacture LTMG
    Model FD160T
    Rated capacityKg16000
    Load centermm600
    DimensionsFree lift heightmm100
    Fork distanceMin./Max.mm680/1700
    Mast tilt angle deg8/12
    Front overhangmm1050
    Overall dimensionsLength to face of forkmm6950
    Overall widthmm2550
    Mast lowered heightmm3240
    Mast extended heightmm4750
    Overhead guard heightmm2700
    Turning radiusmm5400
    Min.right angle aisle widthmm3712
    Performanceno load/full loadTravel speadKm/h28/23
    Lifting speadmm/sc250/220
    Max.grade abnlity%15
    Max.Pull force(full load)KN110
    ChassisTyresFront 4*12.00-24*18PR
    Rear 2*10.00-20*16PR
    TreadFrontmm1850
    Rearmm1820
    Wheelbasemm3200
    Min.Ground clearance( no load/full load)Mastmm250/240
    Framemm250/240
    Drive unit & controlBatteryV/AH24/100*2
    EngineModel YC6B125-T11
    Rated outputKw/rpm92/2300
    Rated torqueN.m/rpm450/1300-1400
    NO.of cylinder 6
    Bore*strokemm108*125
    DisplacementL6.871
    Fuel tank capacityL300
    TransmissionsType Hydraulic
    Shift Front/rear 2/1


    16 ton hydraulic forklift | FD160
    Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160Quick Smooth Lifting 16 Ton Forklift Warehouse Lifting Equipment FD160

    After-sale service
    Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.

    Detail clauses and policies please see to our website and product's quality certificate.
