    Euro III / ISUZU Engine Diesel Operated Forklift Material Handling Equipment

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FD60
    Certification : CE, ISO
    Price : USD 19448 PER SET
    Payment Terms : T/T, L/C
    Supply Ability : 300 units per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

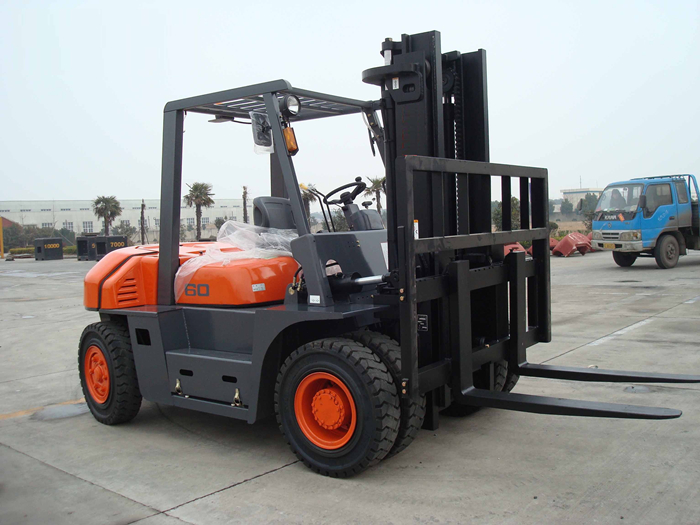

    Euro III / ISUZU Engine Diesel Operated Forklift Material Handling Equipment

    5 ton 6 ton diesel forklift with Euro III engine,ISUZU engine


    6 ton forklift Feature


    1. high strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency.

    2. the seat with the ergonomic design, will take a good fit for the operator

    3. Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.

    4. Optimal gearshift pattern is selectable. Trucks with an automatic transmission come with a three-mode selection switch. You can select the automatic transmission gearshift pattern according to your working conditions with the flick of the switch.


    The specification of 6 ton diesel forklift


    FD60T Technology Specification
    Features1ManufacturerLTMG
    2ModelFD60T
    3Load capacitykg6000
    4Load centermm600
    5Power unitDiesel
    6Operator typeDriver/seat
    7Tire typeFront/rearPnenumatic
    8WheelFront/rear4/2
    Dimension9Max. lifting heightmm3000
    10Free liftmm205
    11Fork sizeL*W*Tmm1220*150*60
    12Tilt rangeMast forward/backwarddeg6/12
    13Overall length(without fork)mm3550
    14Total widthmm1995
    15Mast height (fork lowering)mm2500
    16Overall height fork raisedWith backrestmm4420
    17Height to head guardmm2450
    18Turning raduis(outside)mm3250
    19Front face of fork to front axlemm615
    20Min. right angle stacking aislepallet size :1100×1100 add clearencemm5500
    Performance21SpeedMax Travelling full/no loadkm/h26/30
    22Lifting full/no loadmm/s500/550
    23Lowering full/no loadmm/s450/500
    24Max.drawbar pullfull/no loadkg5500/2250
    25Gradeability at 1.6km/hfull load%37
    26Max. Gradeabilityfull/no load%38/19
    Weight27Truck weightkg8050
    28Weight distributionFull load front/rearkg11710/1340
    29No load front/rearkg4020/4030
    Frame30TiresNumberfront/rear4/2
    31Modelfront axle8.25x15-14PR
    32rear axle8.25x15-14PR
    33Wheelbasemm2250
    34TreadFront/rearmm1470/1700
    Ground clearenceAt lowest point(mast)mm190
    35Framemm230
    BrakeService brakepower brake
    36Parking brakeMechanical-hand lever
    Engine37BatteryVoltage/capacityV/AH2x12V-80AH
    38EngineModelISUZU 6BG1
    Rated powerPS112/2000
    Rated torquekg-m42.5/1500
    Number of cylinders6
    PlacementL6.494
    39Fuel tank capacityL140
    40Transmissionshift stage(front/rear-type)2-2 power shift T/M
    41Operating pressureHydraulic system pressurekg/cm²200
      • After-sale Service


        Nowadays more than100 agents around the world can supply LTMG professional after-sale service.
        All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
        Detail clauses and policies please check our website and product certificate.
