LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp

    Buy cheap LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp from wholesalers

    Buy cheap LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp from wholesalers
    • Buy cheap LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp from wholesalers
    • Buy cheap LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp from wholesalers
    • Buy cheap LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp from wholesalers
    • Buy cheap LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp from wholesalers

    LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FB20
    Certification : CE,ISO
    Price : USD8968-USD1500/unit
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

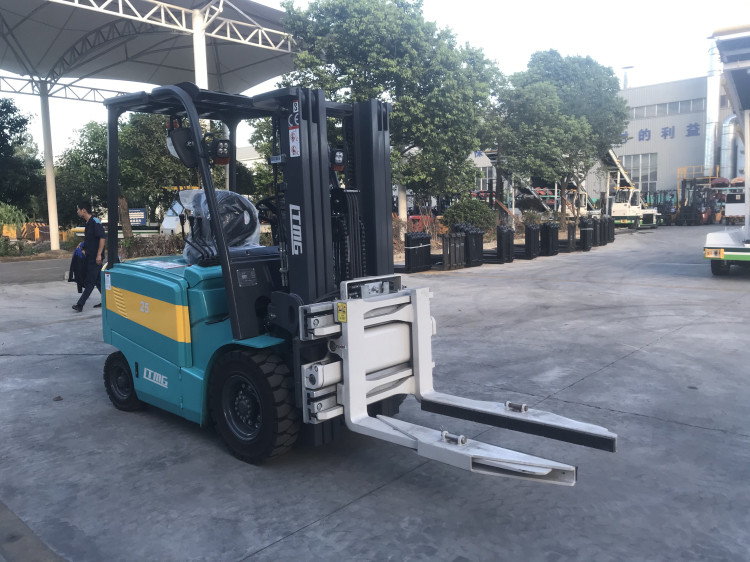

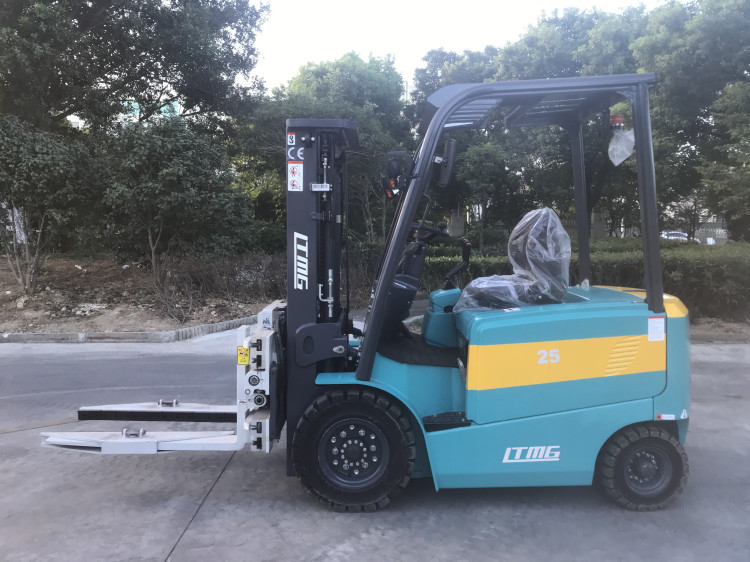

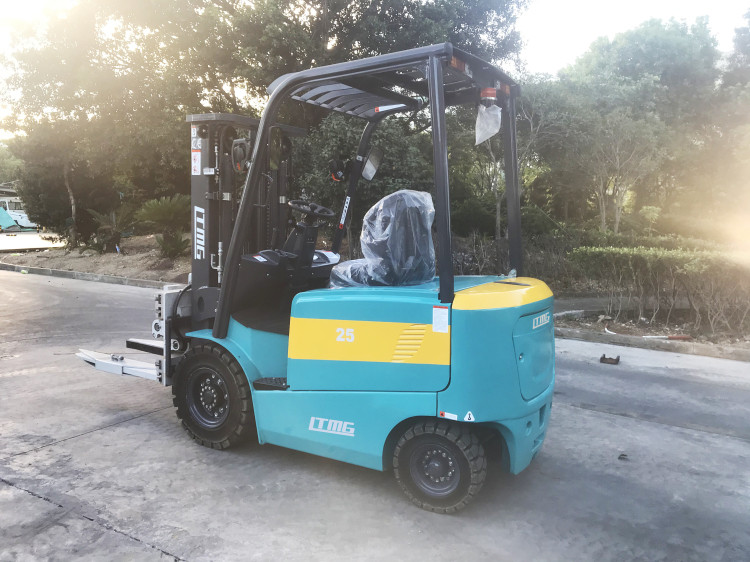

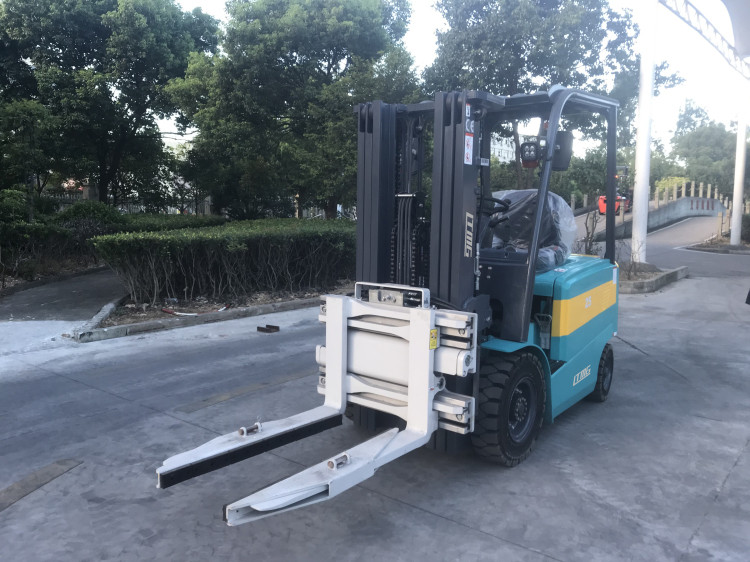

    LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp

    LTMG forklift attachment small 2 ton 2.5 ton diesel forklift with block clamp optional engine

    LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp


    The specification of 2 ton 2.5 ton electric forklift:

    <

    General1ModelFB20FB25
    2Rated Capacitykg20002500
    3Load Centremm500500
    4Lift Heightmm30003000
    5Fork Size (L×W×T)mm1070×120×401070×120×40
    6Mast Tilt Angle F/R (α°/β°)Deg6/126/12
    Characteristic&Dimensions7Length to fork face of fork (Without fork)mm23602360
    8Overall Widthmm11601160
    9Mast Lowered Heightmm20552055
    10Mast Extended Height (With backrest)mm39603960
    11Overhead Guard Heightmm22402240
    12Turning Radius (outside)mm20752075
    13Front Overhang (Wheel center to fork face)mm465465
    14Tread (Front/Rear)mm960/950960/950
    15Ground Clearance (Bottom of mast)mm110110
    16Wheelbasemm15101510
    17Fork Spread (Min./Max)mm240/1040240/1040
    Performance18Travel Speedkm/h1414
    19Lifting Speed (Full load)mm/s300270
    20Max. Gradeability%1515
    21Service Weightkg41704170
    22Front Tire×27.00-12-12PR7.00-12-12PR
    23Rear Tire×218×7-8-14PR18×7-8-14PR
    Driven24Driven Motorkw1111
    25Lift Motorkw8.68.6
    26Battery StandardV/Ah48/56048/630
    27Controller ManufacturerCURTIS ACCURTIS AC
    28Operating Pressure for AttachmentMpa1818

    After-sale Service
    LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
    All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please check our website and product certificate.

    LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clampLTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp


    FAQ:


    1.What Certificate do you have?
    LTMG workshop meet with the ISO9001:2008 Quality System.
    All of our products with CE certificate. Some of our products meets the EPA requirements.

    2. Can you customize and design as the clients' requirement?
    LTMG will try its best to meet all kinds of clients' special requirements.
    However, All the customizing and refit should be implemented safely and scientifically.
    The colors can be painted as client's need.

    3.How long is the warranty of your products?
    Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

    4. Can you produce the products labeled with the client's brand?
    With the authorization of the brand, we can OEM for our clients.

    5. What payment terms do you accept?
    Normally 30% T/T in advance as deposit, blance paid before shipment.
    100% L/C at sight issued by world famous bank with good faith is also available.

    6.Delivery time:
    Standard configuration products are always in stock.
    The production period of Customizing products is 30 days.

    Quality LTMG forklift attachment small 2 ton 2.5 ton electric orklift with block clamp for sale
