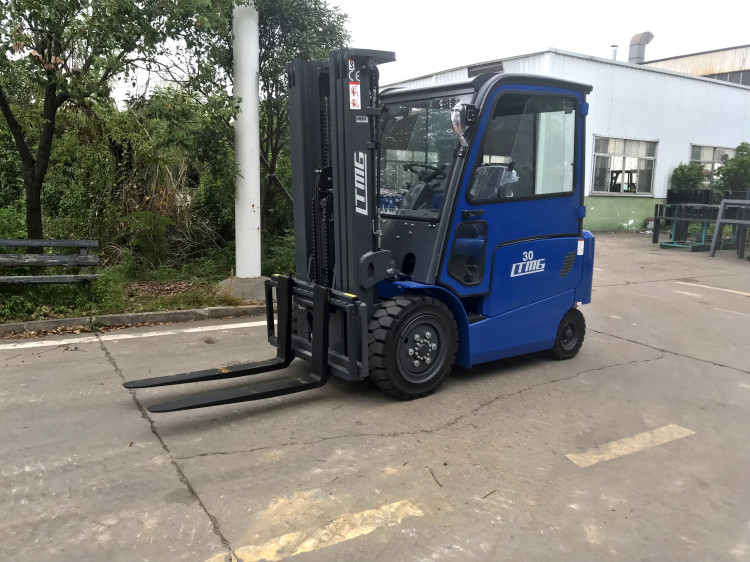

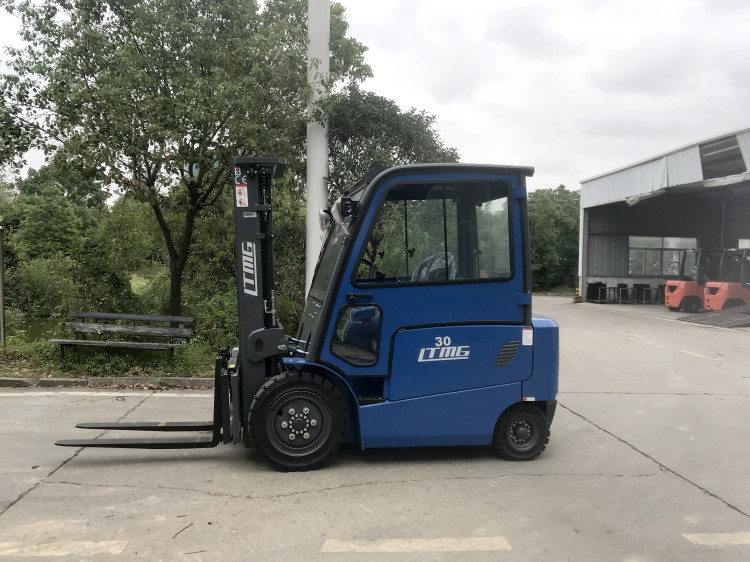

LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast

Xiamen LTMG Co., LTD
Contact Now
    Buy cheap LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast from wholesalers

    Buy cheap LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast from wholesalers
    • Buy cheap LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast from wholesalers
    • Buy cheap LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast from wholesalers
    • Buy cheap LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast from wholesalers
    • Buy cheap LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast from wholesalers
    • Buy cheap LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast from wholesalers

    LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FB30
    Certification : CE ISO
    Price : 16800 USD/Set
    Payment Terms : T/T, D/A, L/C,
    Supply Ability : 800 set/year
    Delivery Time : 45days
    • Product Details
    • Company Profile

    LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast


    LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mastLTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mastLTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mastLTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mastLTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast

    General1ModelFB30
    2Rated Capacitykg3000
    3Load Centremm500
    4Lift Heightmm3000
    5Fork Size (L×W×T)mm1070×125×45
    6Mast Tilt Angle F/R (α°/β°)Deg6/12
    Characteristic&Dimensions7Length to fork face of fork (Without fork)mm2610
    8Overall Widthmm1230
    9Mast Lowered Heightmm2110
    10Mast Extended Height (With backrest)mm4180
    11Overhead Guard Heightmm2250
    12Turning Radius (outside)mm2350
    13Front Overhang (Wheel center to fork face)mm480
    14Tread (Front/Rear)mm1000/980
    15Ground Clearance (Bottom of mast)mm140
    16Wheelbasemm1700
    17Fork Spread (Min./Max)mm250/1100
    Performance18Travel Speedkm/h14
    19Lifting Speed (Full load)mm/s300
    20Max. Gradeability%15
    21Service Weightkg5100
    22Front Tire×228×9-15-12PR
    23Rear Tire×218×7-8-14PR
    Driven24Driven Motorkw15
    25Lift Motorkw12
    26Battery StandardV/Ah80/500
    27Controller ManufacturerCURTIS AC
    28Operating Pressure for AttachmentMpa18

    LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast

    LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast

    Quality LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow solid tires side shift 4800mm mast for sale
