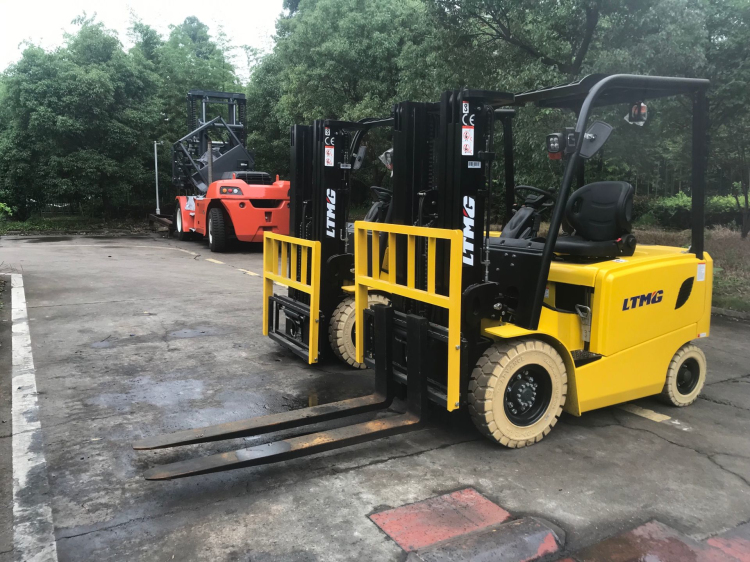

    Dual Front Tires 2 Ton Electric Forklift , 6m 3 Stage Mast Forklift Machine

    Ask Lasest Price
    Brand Name : LTMG
    Model Number : FB25
    Certification : CE, ISO
    Price : USD 9900-14500/unit
    Payment Terms : T/T, L/C
    Supply Ability : 200 unit per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Dual Front Tires 2 Ton Electric Forklift , 6m 3 Stage Mast Forklift Machine

    2 ton electric forklift with dual front tires 6m 3-stage full free mast


    2 ton electric forklift feature


    1. LTMG offers a wide range od Diesel,Gasoline and LPG engine options.
    2. LTMG forklifts do comply with the latest safty,emission and noise standards e.g. CW,EU3.
    3. Integrated overhead guard and rain cover offering outstanding protection and visbility.
    4. Greater visibility through the mast due to special mast design,low position of dashboard and display.

    5. High voltage and large capacity battery can supply the forklift with strong power, GS&HOPPECKE battery group is optional according to customers' requirements.


    The specification of 2 ton electric forklift


    Technical secification of battery forklift
    Features1ManufacturerLTMG
    2ModelFB20
    3Load capacitykg2000
    4Load centermm500
    5Power unitBattery ,diesel ,gasolineBattery
    6Operator typeDriver/seat
    7Tire typeFront/rearAir tires
    8WheelNumber Front/rear2X/2
    Dimension9Max. lifting heightmm3000
    10Free liftmm160
    11Fork sizeL*W*Tmm1070*122*40
    12Tilt rangeMast forward/backwarddeg6-12
    13Overall length(without fork)mm2245
    14Total widthmm1150
    15Mast height (fork lowering)mm1995
    16Overall height fork raisedWith backrestmm4030
    17Height to head guardmm2145
    18Turning raduis(outside)mm1980
    19Front face of fork to front axlemm445
    20Min. right angle stacking aislenot add load length&clearencemm1885
    Performance21SpeedMax Travelling full/no loadkm/h13.5/15
    22Lifting full loadmm/s240
    23Lifting no loadmm/s450
    25Gradeabilityfull load%12.5
    Weight26Truck weightkg3440
    27Weight distributionFull load front/rearkg4565/875
    28No load front/rearkg1445/1995
    Frame29TiresNumberfront/rear2/2
    30Modelfront axle21x8-9-16PR
    31rear axle18x7-8-14PR
    32Wheelbasemm1400
    33TreadFront/rearmm955/950
    34Ground clearenceAt lowest point(mast)mm110
    Framemm115
    35BrakeService brakeHydraulic-foot peda
    Parking brakeMechanical lever
    Electric motor and controller36BatteryVoltage/capacityV/AH/5hr48V-450
    37Weight (standard)kg825
    38Electric motorDriving motorkw/60min8
    39Hydraulic driving motorkw/5min8.6
    40Control typeElectric driving1
    41Operating pressureHydraulic system pressurekg/cm²175
    NOTE: 1.Drving AC choppedwave control mode /lifting AC voltage control mode


    After-sale service


    Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
    All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
    Detail clauses and policies please see to our website and product’s quality certificate.
